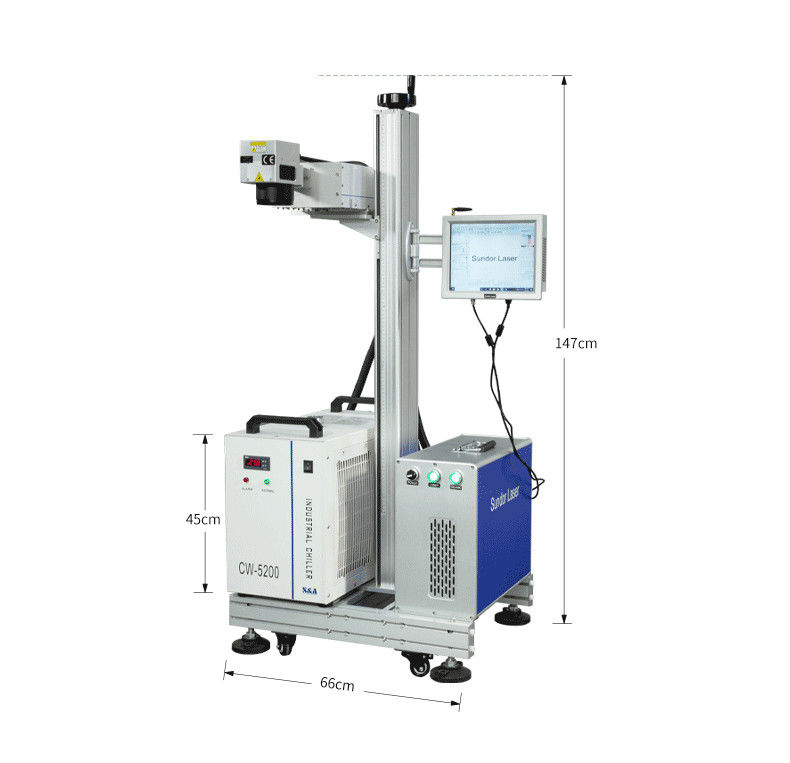

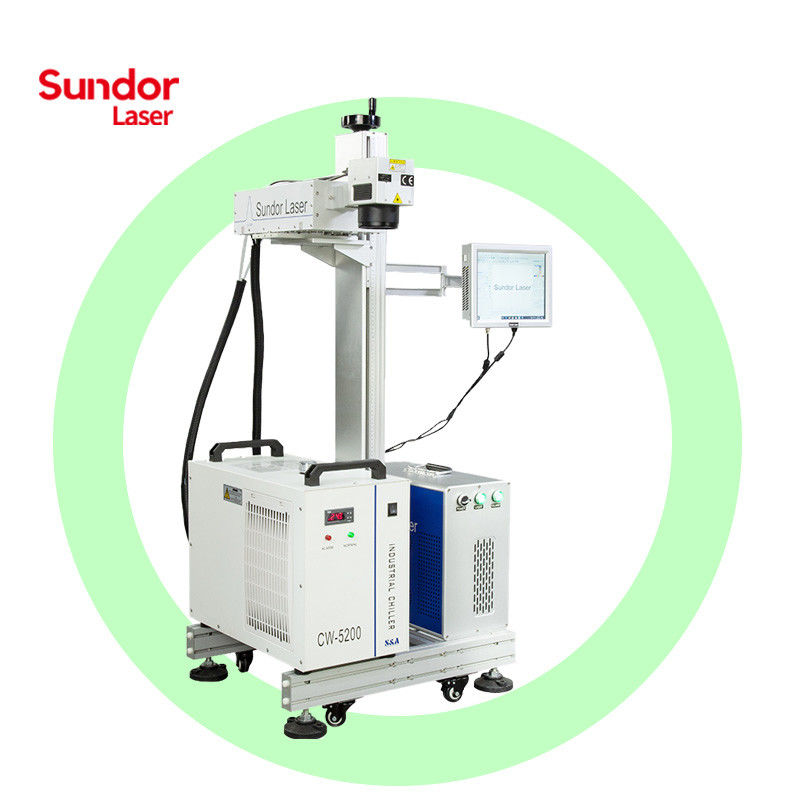

Welcome to our UV Laser Marking Machine.
Following are some parameters of UV laser marking machines:
Parameters |
Details |
Laser type |
UV laser |
Laser wavelength |
355 nm |
Function |
Precision marking on all materials |
Laser Power |
3W / 5W / 10W /20W (optional) |
Working Acccuracy |
0.001mm |
file format support |
Vector file (AI, PLT, DXF etc) & Bitmap files( BMP, etc) |
Cooling mode |
Water cooling |
Operating Voltage |
110V / 220V or customized |
Total power |
600W |
Marking area |
110*110mm (others could be optional) |
Repeat Accuracy |
±0.003mm |
Marking speed |
≤7000mm/s |
Assembly line speed |
≤200mm/s |
Flyiing mark lines |
10 lines |
Min line width |
0.15mm |
Min Character |
0.32mm |
Continuous working hours |
24h |
Now, let's show you how to choose suitable UV laser marking machine:
1. The materials you want to be marking:
We need to know what's materials you want to marking, (text, graphics, barcodes, etc.), and consider the marking size and content complexity, as well as any special requirement.
Sundor laser could free testing the marking effects for your reference.
2. Confirm Marking Speed and Volume Requirements:
If your production have large volume, we need to evaluate the expected production volume and the required marking speed. High-volume production may necessitate a faster machine with automated features to enhance productivity.
3. Consider Marking Area and Size Limitations:
Check the marking area and ensure it suitable for the workpiece you intend to mark. It's essential to select a machine that can handle your largest and smallest marking requirements.
4. Precision and Resolution:
Evaluate the precision and resolution capabilities of the machine. This is very important for industries that require fine details and high-quality markings, such as electronics or jewelry.
5. Ease of Use and Software:
Whether the software user interface is friendly easy to operate. Ask how easy it is to set up and configure the machine.
6. Maintenance and Reliability:
Look for a UV laser marking machine that offers low maintenance and has a reputation for consistent performance. Meantime, famous brand parts also determine the quality of laser equipment.
Sundor laser UV laser marking machine all adopt Chinese famous brand parts, which will bring you different feeling of equpment.
7. Training and Support:
Inquire about the training and support provided by the manufacturer. Adequate training for your operators will ensure proper utilization of the machine, and reliable support is essential for troubleshooting and maintenance.
8. Budget and ROI:
Consider your budget and the return on investment (ROI) the UV laser marking machine can provide. While cost is a factor, prioritize value and long-term benefits over the initial investment.
If you want to know more information, welcome to contact us at any time, we could show you more information, and free testing for you.
UV laser marking machines are suitable for almost all kinds of materials and various industries. Especially for the condition which fiber laser marking machine and CO2 laser marking machine no method to match effects of requirement.

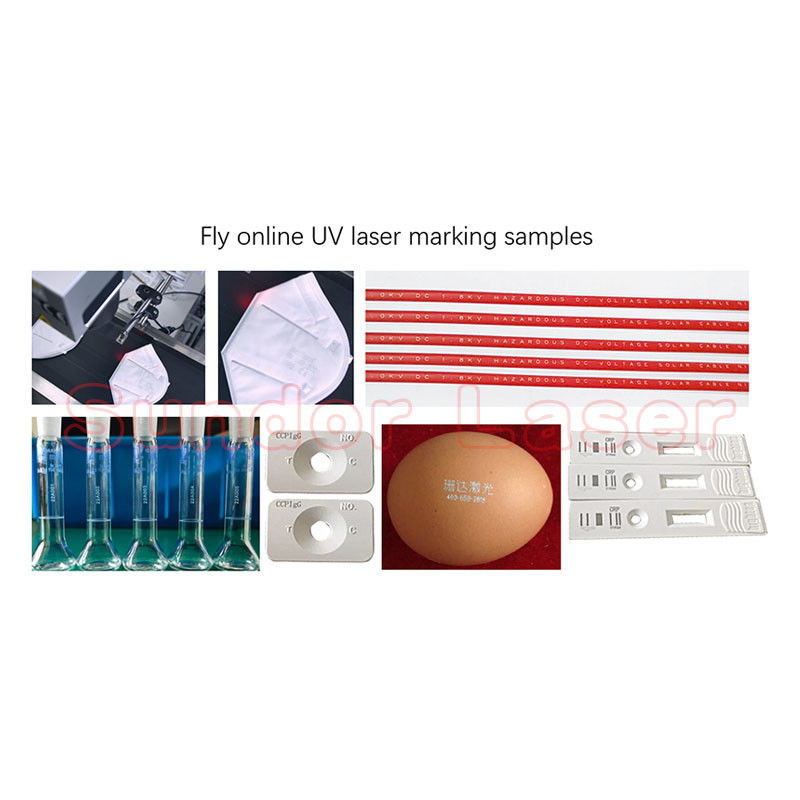

Follows are some photos which marked by UV laser marking:
If you have any precision marking demand on different kinds of materials, please contact us at any time. We will free testing for your reference.
Waiting for your kindly message.
The UV laser marking machine packing by wooden cases
