| Place of Origin: | Beijing, China |
|---|---|
| Brand Name: | SUNDOR |
| Certification: | ce, ISO |
| Price: | $1900.00/sets 1-4 sets |
| Packaging Details: | 1. Packaging with factory Metal Nameplate; 2. Standard export wooden cases with sponge filled inside for packing protection 3. The Wooden case is fumigation free. Suitable both by sea and by air. |
| Supply Ability: | 999 Set/Sets per Month |
| Application: | Laser Marking, Metal And Non Metal | Working Accuracy: | 0.01mm |
|---|---|---|---|
| Graphic Format Supported: | AI, BMP, Dst, Dwg, DXF, LAS, PLT, JPG, CAD, CDR, DWG,PCX | Laser Type: | UV |
| Condition: | New | CNC Or Not: | Yes |
| Cooling Mode: | Air Cooling | Control Software: | EZCAD |
| Laser Source Brand: | RAYCUS | Control System Brand: | EZCAD |
| Weight (KG): | 130 KG | Key Selling Points: | High Productivity |
| Warranty: | 2 Year | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
| Marking Area: | 175mm*175mm,300mm*300mm | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 2 Year |
| Core Components: | Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC | Min Line Width: | 0.013mm |
| Min Character: | 0.15mmx0.15mm | Wavelength: | 355nm |
| Laser Repetition Frequency:: | 20KHz-200KHz(adjustable) | Marking Depth: | 0.01-1.0mm(subjejct To Material) |
| Keywords: | Fiber Laser Marking Machine | Power: | 20W/30W/50W |
| Usage: | Metal And Non Metal | After-sales Service Provided: | Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support |
| Highlight: | 100W UV Laser Marking Machine,50W UV Laser Marking Machine,Fiber CO2 Laser Marking Machine |
||

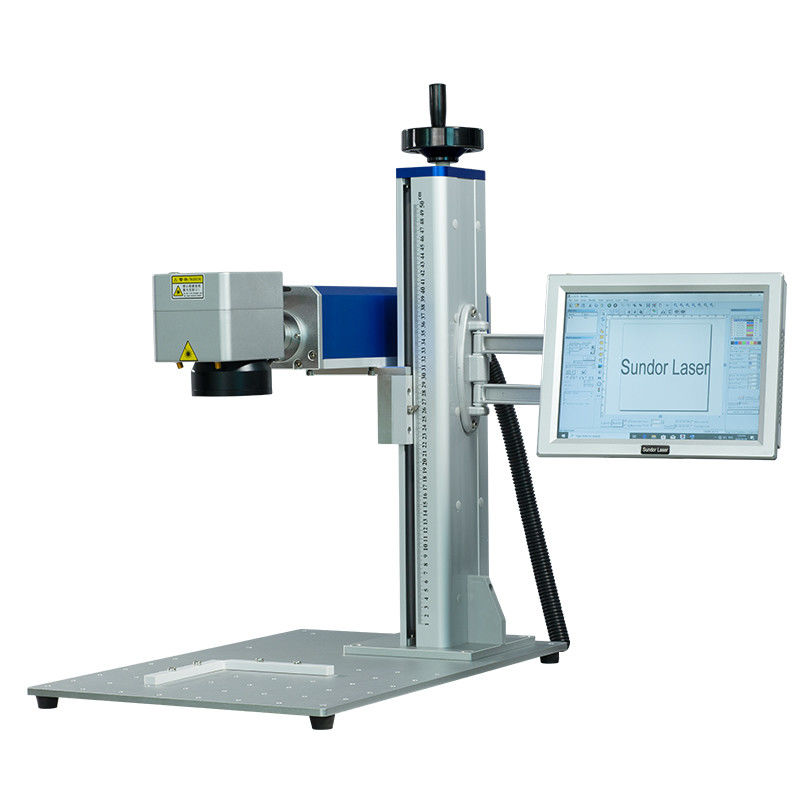

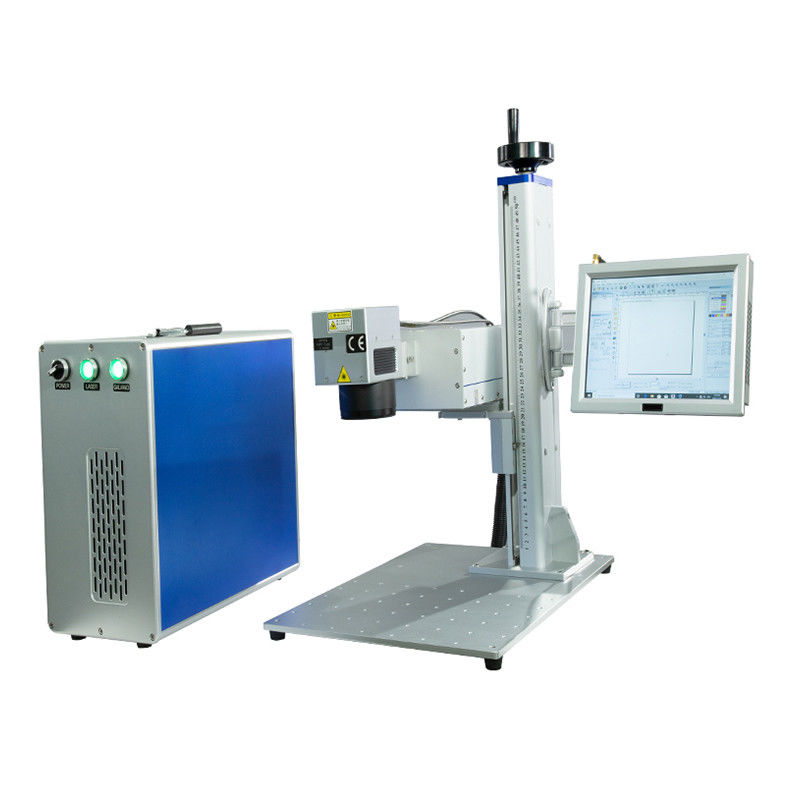

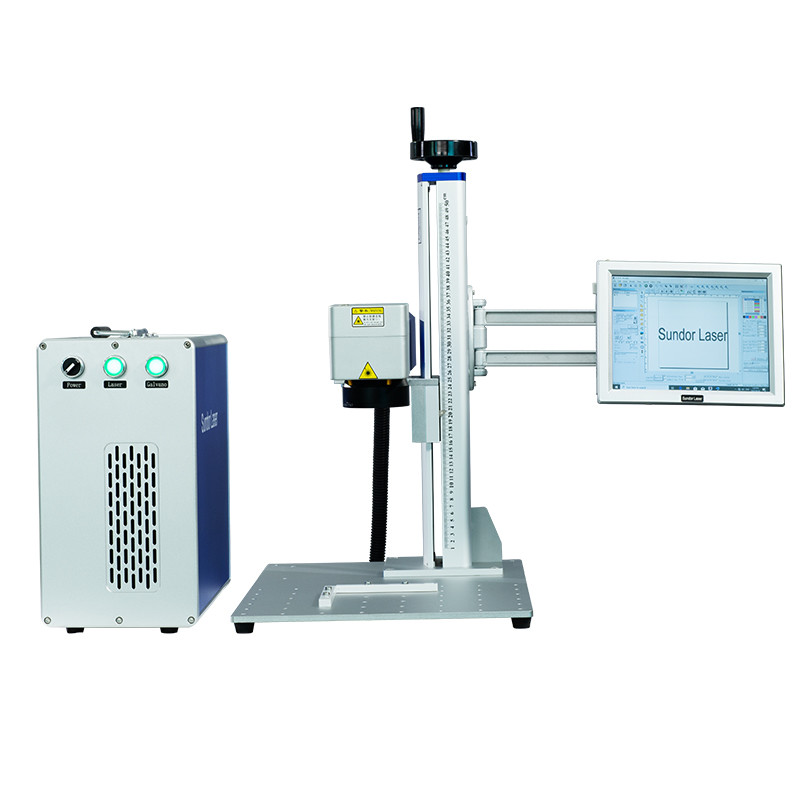

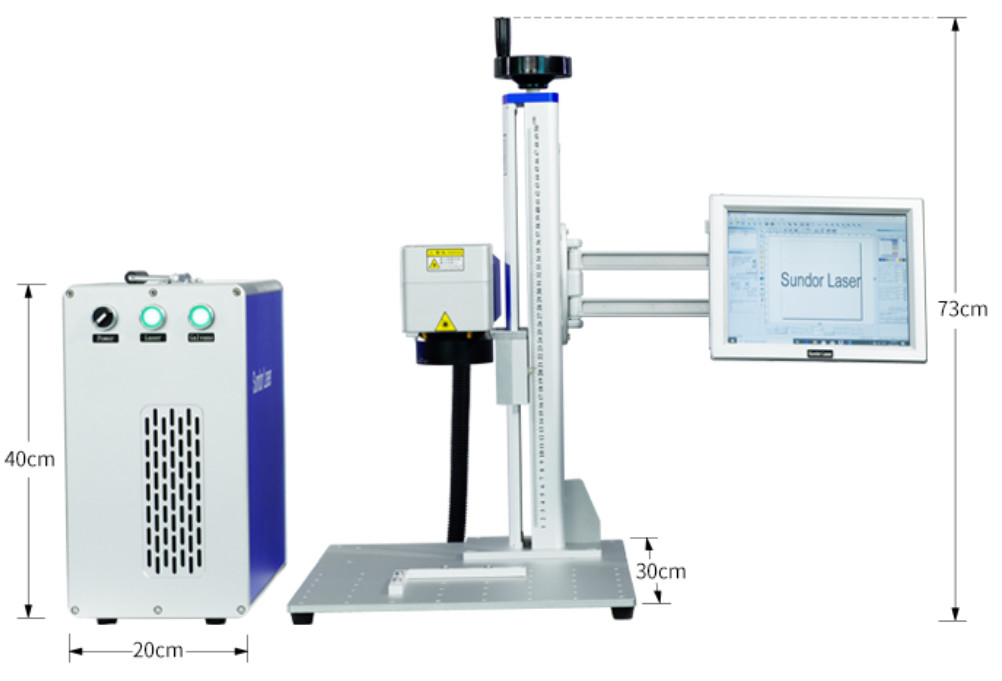

Long Service life 20w 30w 50w 100W Portable Fiber CO2 Laser Marking Machine
Laser Marking Machine
| Laser Type | FIBER LASER |
| Modol | YLH-20E/30E/50E |
| Certificatons | CE, ISO,OTHER |
| Power | 20w 30w 50w optional |
| Brand | SUNDOR |
| Country of Origin | CHINA |
| Work Precision | ±0.01mm |
| Support Format | PLT, DST, AI, DXF, BMP, JPG, CAD,CDR, DWG,PCX |
| Software | EZCAD |
| Cooling Way | AIR COOLING |
| NC | YES |
| Condition | NEW |
| Warranty | 24 Months |
| Work Area (mm) | 110x110/175x175(Customized) |
| Min Line Width | 0.017mm |
| Min Character | 0.15mmx0.15mm |
| Wavelength | 1064nm |
| After-Service | Engineers available to service machinery overseas |
| Laser Repetition Frequency: | 20KHz-80KHz(adjustable) |
| Power Demand | AC220V/50HZ/2A |
| Optimum Working Temperature | 10-35 °C |
| Marking Depth | 0.01-1.0mm(subjejct to material) |
1. The fiber laser generator is high integrated, has superior laser beam and uniform power density. Output laser power is stable. This design highly increase the machine’s anti-reflection ability with optical isolator, be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.
2. Adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and performance reached the international advanced level.
3. Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled inside, small occupation, easy to install.
4. Adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and powerful control system, can meet the demand of most industry application process in market.
5. High efficiency for photoelectric conversion, simple operation, Compact in structure, support harsh working environment, no consumables.
6. YLH-20L Desktop fiber laser marking machine is a standard type in the whole fiber laser marking machine series. Its classical design stands popular since laser marking machine’s birth.
1.Applicable Industries:
Precision instruments, computer keyboards, auto parts, plumbing parts, communications equipment, medical equipment , bathroom equipment, hardware tools, luggage decoration, electronic components, home appliances, watches, molds, gaskets and Seals, data matrix, jewelry, cell phone keyboard, buckle, kitchenware, knives, cooker, stainless steel products, aerospace equipment, integrated circuit chips, computer accessories, signs molds, elevator equipment, wire and cable , Industrial bearings, building materials, hotel kitchen, military, pipelines.
Tobacco industry, bio-pharmaceutical industry, liquor industry, food packaging, beverage, health care products, plastic buttons, bathing supplies, business cards, Clothing accessories, cosmetics packaging, car decoration, wood, logos, characters, serial number, bar code, PET, ABS, pipeline, advertising logo and other non-metallic industries.
2. Applicable Materials:
1. All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition
2. Non-metallic: non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothes , wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material
1.Standard wooden cases with sponge filled inside for packing protection
2. The Wooden case is fumigation free which is suitable by sea & by air.
3. Customized Packing as per Customer's requirement.
