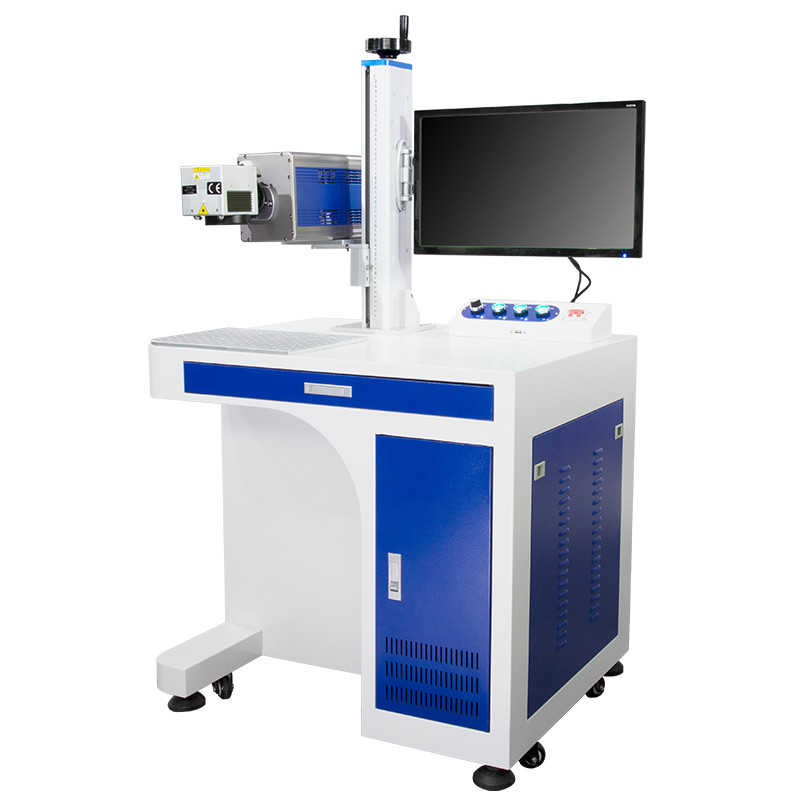

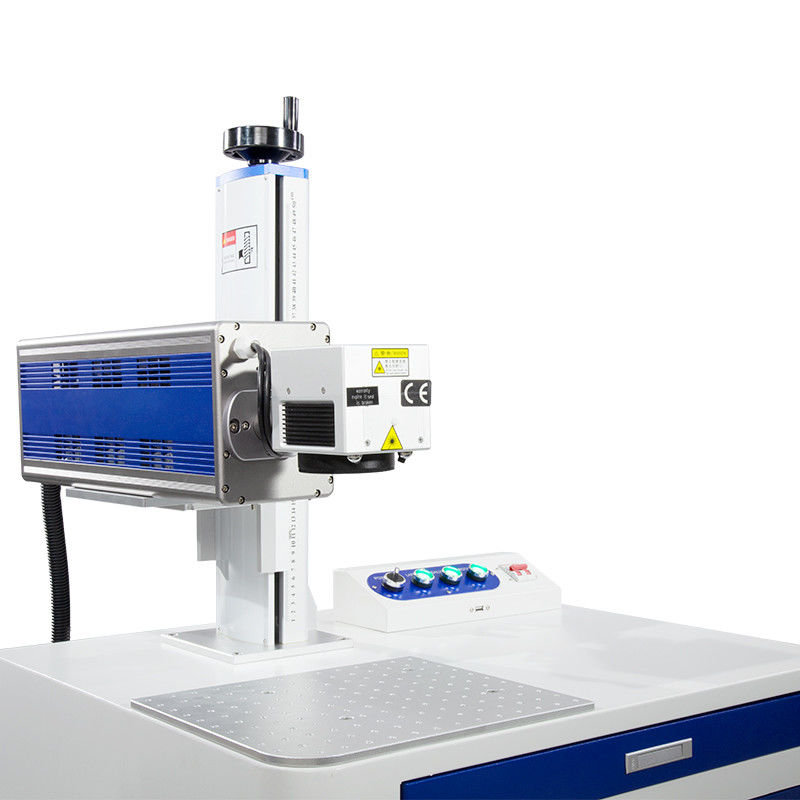

Desk Portable 30watt 60watt CO2 Laser Marking Machine For Plastic Leather

Basic Information
Place of Origin: tianjin, China
Brand Name: SUNDOR
Certification: ce, ISO
Price: $3,500.00/sets 1-4 sets
Packaging Details: 1. Packaging with factory Metal Nameplate; 2. Standard export wooden cases with sponge filled inside for packing protection 3. The Wooden case is fumigation free. Suitable both by sea and by air.
Supply Ability: 300 Set/Sets per Month
Detail Information
Application: Laser Marking Working Accuracy: 0.01mm
Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, LAS, PLT, JPG, CAD, CDR, DWG,PCX Laser Source Brand: CRD
Control System Brand: EZCAD Weight (KG): 130 KG
Key Selling Points: High Productivity Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company
Marking Area: 110mm*110mm,175mm*175mm,200mm*200mm,300mm*300mm Warranty Of Core Components: 2 Years
Core Components: Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC Wavelength: 10.6 μm
Marking Depth: 0.01-1.0mm(subjejct To Material) After-sales Service Provided: Engineer Directed Operation
High Light:

60watt CO2 Laser Marking Machine

,

30watt CO2 Laser Marking Machine

,

Desk Portable Laser Marking Machine


Product Description

Desk Portable Type 30w 60w CO2 Laser Marking Machine for plastic, leather and non-matel

 Co2 Color Laser Marking Machine





Product Description

Desk Portable 30watt 60watt CO2 Laser Marking Machine For Plastic Leather 0

Desk Portable 30watt 60watt CO2 Laser Marking Machine For Plastic Leather 1

Product Name Desktop Co2 Color Laser Marking Machine 30w
Laser Type CO2
Modol YLH-L
Certificatons CE, ISO,OTHER
Power ≥30W
Brand SUNDOR
Country of Origin CHINA
Work Precision ±0.01mm
Support Format PLT, DST, AI, DXF, BMP, JPG, CAD,CDR, DWG,PCX
Software EZCAD
Cooling Way AIR COOLING
NC YES
Condition NEW
Min Line Width 0.15mm
Min Character 0.2mmx0.2mm
Wavelength 10.6 μm
After-Service Engineers available to service machinery overseas
Laser Repetition Frequency: 20KHz-80KHz(adjustable)
Power Demand AC220V/50HZ/2A
Optimum Working Temperature 10-35 °C
Marking Depth 0.01-1.0mm(subjejct to material)

Product Features



1.    Marking process in automation, fast speed, high efficiency, good anti-counterfeit;
2.    Stable equipment performances, the optical system can be adjusted as to and fro, up and down, and can be equipped with red light position indicating device;
3.    Adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and performance reached the international advanced level.
4.    Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled inside, small occupation, easy to install.
5.    Adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and powerful control system, can meet the demand of most industry application process in market. Control software supports automatic encoding, variable text, date, serial number, lot number, bar code and two-dimensional code printing, and can be modified according to customers’ different needs of production line flexibly.
6.    Adopt special flying marking control system, with good performance and easy operation. Can easily match with producing line and work continuous 24 hours which meets industrialize large-scale production.
7.    High efficiency for photoelectric conversion, simple operation, Compact in structure, support harsh working environment, no consumables.
8.     CO2 laser marking machine performs excellent while marking on transistor, chip component, IC, Ceramic capacitor, thermistor due to its effects of nice extrinsic feature, clear writing and anti-friction. It especially specializes in automatic machining process for marking on bulk packing or strip packing components.



Product Details

Desk Portable 30watt 60watt CO2 Laser Marking Machine For Plastic Leather 2Desk Portable 30watt 60watt CO2 Laser Marking Machine For Plastic Leather 3

Desk Portable 30watt 60watt CO2 Laser Marking Machine For Plastic Leather 4

Desk Portable 30watt 60watt CO2 Laser Marking Machine For Plastic Leather 5



Desk Portable 30watt 60watt CO2 Laser Marking Machine For Plastic Leather 6


Product Applications

The equipment is widely used in non-metal materials such as paper, leather, wood product, plastic, Perspex, cloth, acrylic, wood bamboo, rubber, crystal, diamond stone, jade, ceramics, glass, artificial stone and etc.

Desk Portable 30watt 60watt CO2 Laser Marking Machine For Plastic Leather 7

Related Products
Desk Portable 30watt 60watt CO2 Laser Marking Machine For Plastic Leather 8
Packaging

1. Packaging with factory Metal Nameplate;

2. Standard export wooden cases with sponge filled inside for packing protection.

3. The Wooden case is fumigation free. Suitable both by sea and by air.

Desk Portable 30watt 60watt CO2 Laser Marking Machine For Plastic Leather 9

 Desk Portable 30watt 60watt CO2 Laser Marking Machine For Plastic Leather 10

Company Information

 Desk Portable 30watt 60watt CO2 Laser Marking Machine For Plastic Leather 11

Desk Portable 30watt 60watt CO2 Laser Marking Machine For Plastic Leather 12

Desk Portable 30watt 60watt CO2 Laser Marking Machine For Plastic Leather 13

FAQ



Q1: I know nothing about this machine, what type of machine should I choose?

We will help you choose the suitable machine and share you the solution; you can share us what material will you marking / engraving and the depth of MARKING/ ENGRAVING.



Q2: When I got this machine, but I don’t know how to use it. What should I do?

We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.



Q3: If some problems happen to this machine, what should I do?

We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.



Q4: What’s consumables of laser marking machine?

A: It does not have consumable. It’s very economical and cost effective.



Q5: What’s package, will it protect the products?

A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.



Q6: What’s delivery time?

A: Commonly, the lead time is within 5 working days after receiving the payment.



Q7: What payment terms can you accept?

A: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.



Q8: How is the shipping method?

A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
