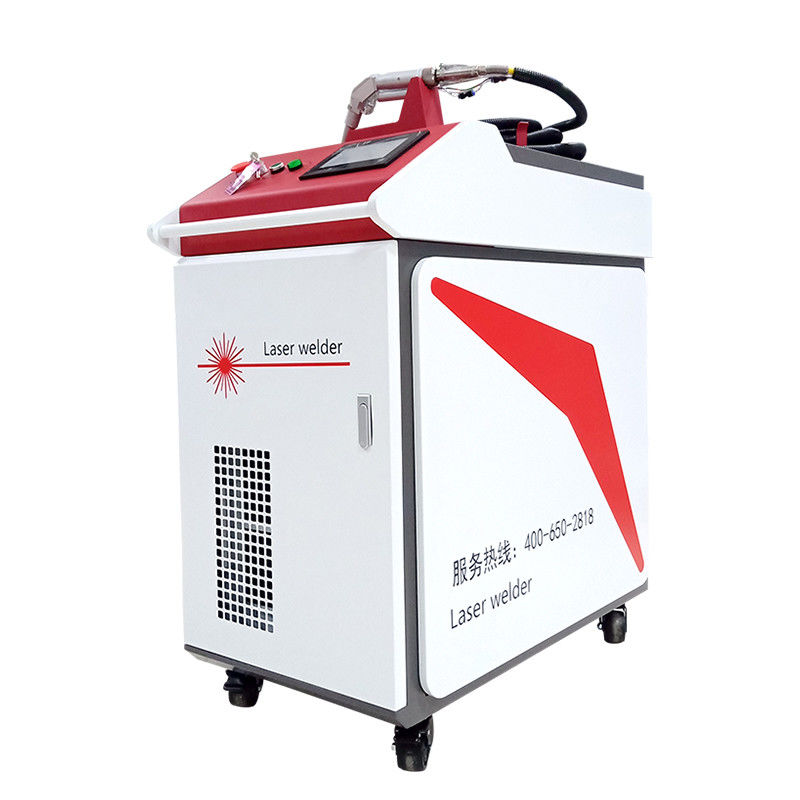

RAYCUS 1000w Laser Welding Machine CE 1500w Handheld Laser Welder

Basic Information
Place of Origin: Beijing, China
Brand Name: SUNDOR
Price: $8,900.00/sets 1-4 sets
Packaging Details: Standard export wooden box
Supply Ability: 100 Set/Sets per Month
Detail Information
Condition: New Max. Output Power: 5000
Usage: Matel Welding Single Pulse Energy: 300J
Pulse Width: 0.5~10ms Wavelength: 1080NM
Focal Spot Diameter: 0.2 ~ 2.0 Mm Dimensions: 950x970x1520MM
Warranty: 2 Years Laser Source Brand: RAYCUS
Weight (KG): 200 KG Key Selling Points: High Productivity
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Restaurant, Construction Works , Advertising Company Machinery Test Report: Provided
Video Outgoing-inspection: Provided Marketing Type: New Product 2020
Warranty Of Core Components: 2 Years Core Components: Pressure Vessel, Motor, Bearing, Gear, PLC, Pump, Engine, Gearbox
Cooling Method: Water Cooling Power Demand: 220-240VAC,50/60HZ,3600W
After-sales Service Provided: Field Installation, Commissioning And Training After Warranty Service: Online Support
Local Service Location: South Korea Brand: Sundor Laser
Advantage: Handheld Type Power: 1000W/2000W/3000W
Laser Type: Fiber Laser Source Application: Welding Metal
High Light:

RAYCUS 1000w Laser Welding Machine

,

1000w Laser Welding Machine CE

,

CE 1500w Handheld Laser Welder


Product Description

1500w Handheld Laser Welder 1000w Laser Welding Machine With Ce

Chinese 300W 500W 1000w 1500w Fiber Laser Optic Welder  Channel Letter Laser Welding Machine Price

RAYCUS 1000w Laser Welding Machine CE 1500w Handheld Laser Welder 0

Laser Welding Machine Is The Best Choice Of Spot Welding, Seam Welding And Long Pulse Drilling. It Is Compact Structure Design ,Easy Operation , Simple Using And Low Electricity Consumption

Product Description



Laser welding a high efficient precision welding method which is in the use of high energy density laser beam as a heat source . Laser welding is one of the important aspects of laser processing technology. Laser radiates and heats the workpiece surface, The surface heat diffuses to the inside through heat conduction, Then the laser makes the workpiece melting and form the specific welding pool by controlling the laser pulse width, energy, peak power and repetition frequency. Due to its unique advantages, it has been successfully applied to the precise welding for micro parts and small parts.

Laser welding is fusing welding technology, laser welder puts laser beam as the energy source, and make it impact on the weldment joints to realize welding .

 RAYCUS 1000w Laser Welding Machine CE 1500w Handheld Laser Welder 1
RAYCUS 1000w Laser Welding Machine CE 1500w Handheld Laser Welder 2
Fiber laser handheld welding machine features:
1, the electro-optic conversion efficiency is high.
2, anti-high-reaction ability.
3, thin plate welding is efficient.
4, thick plate deep melting without splash.
4, the output fiber length can be customized.
5, water cooling is more stable.
6, maintenance-free operation.
7, wide modulation frequency range.
RAYCUS 1000w Laser Welding Machine CE 1500w Handheld Laser Welder 3



Product Details

 RAYCUS 1000w Laser Welding Machine CE 1500w Handheld Laser Welder 4



 RAYCUS 1000w Laser Welding Machine CE 1500w Handheld Laser Welder 5RAYCUS 1000w Laser Welding Machine CE 1500w Handheld Laser Welder 6RAYCUS 1000w Laser Welding Machine CE 1500w Handheld Laser Welder 7

It is suitable for spot welding, seam welding, micro welding, drilling, cutting, battery manufacturing,medical equipment, telecommunications industry and computer components industry.

After-sales service

 RAYCUS 1000w Laser Welding Machine CE 1500w Handheld Laser Welder 8

Installation & training

After the machine reach the buyer’s site,the engineers from the seller are responsible for machine installation and commissioning by using the special tools under the help of the buyer. Buyer should pay for our engineer visa fee, air tickets, accommodation, meals etc.

Training:



In order to provide training in safe operation, programming and maintenance, Party B shall provide qualified instructors after Party A finally installs the equipment. Party B provides details on the content and time requirements of each training course.



The following training courses taught by qualified instructors are carried out by Party B at Party A (preferably during final acceptance of equipment) or Party B (pre-acceptance of equipment).



1, mechanical maintenance training

2, gas / electronic maintenance training

3, optical maintenance training

4, programming training

5, advanced operation training

6, laser safety training



 Warranty & Service



Our company provides party a with complete pre-sales, sales, after-sales services and training for partyas technical personnel:



Our company provides pre-sale service items for party a include: Party a's engineering and technical personnel, use departments, supply departments and other people's consulting services for laser equipment, sample process testing, equipment selection and so on. After the signing of the contract, our company is responsible for the design and manufacture of equipment strictly in accordance with the terms of the contract technical specifications, and is responsible for the delivery of the equipment to party a's site for installation and commissioning. During installation and commissioning, our company dispatches technical personnel to party a to participate in and guide the site until acceptance.



In the process of equipment installation and commissioning, our company is responsible for training 2-3 of the operation and maintenance personnel of party a. The training includes laser principle, equipment construction, process description, equipment maintenance, laser safety protection, operating procedures and simple troubleshooting. Such as, so that the operation and maintenance personnel of party a have certain equipment maintenance and troubleshooting capabilities.



During the use of equipment by party a, our engineering and technical personnel will also retrain party a personnel in a timely manner to ensure the normal operation of the equipment.



One year from the date of acceptance of the equipment is the warranty period. During the warranty period, we will implement three guarantees for the equipment (except for consumables, lamps, and optical fibers). After the warranty period, the equipment is subjected to life-long maintenance services and only costs are charged.



After receiving the problem of the equipment failure of party a, we shall promptly send professional and technical personnel to telephone consultation. If we cannot solve the equipment failure of party a, we will immediately dispatch professional maintenance personnel to arrive at the equipment site for maintenance within 24 hours.



Our company is responsible for the long-term provision of relevant spare parts to party a (paid)



Related Product

 RAYCUS 1000w Laser Welding Machine CE 1500w Handheld Laser Welder 9





Company Information

 RAYCUS 1000w Laser Welding Machine CE 1500w Handheld Laser Welder 10RAYCUS 1000w Laser Welding Machine CE 1500w Handheld Laser Welder 11RAYCUS 1000w Laser Welding Machine CE 1500w Handheld Laser Welder 12

Q1: I know nothing about this machine, what type of machine should I choose?

A:We will help you choose the suitable machine and share you the solution; you can share us the following information

1. what material will you weld

2. The welding material thickness

3. Is it joint welding or over-lay welding

4. What is the exact usage for the machine , for product welding or repair or other application



Q2: When I got this machine, but I don’t know how to use it. What should I do?

A:We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.



Q3: If some problems happen to this machine, what should I do?

A:We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.



Q4: What’s consumables of laser marking machine?

A: It does not have consumable. It’s very economical and cost effective.



Q5: What’s package, will it protect the products?

A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.



Q6: What’s delivery time?

A: As per your requirement , we will suggest the suitable machine . The exact delivery time as per your machine.



Q7: What payment terms can you accept?

A: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.



Q8: How is the shipping method?

A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
