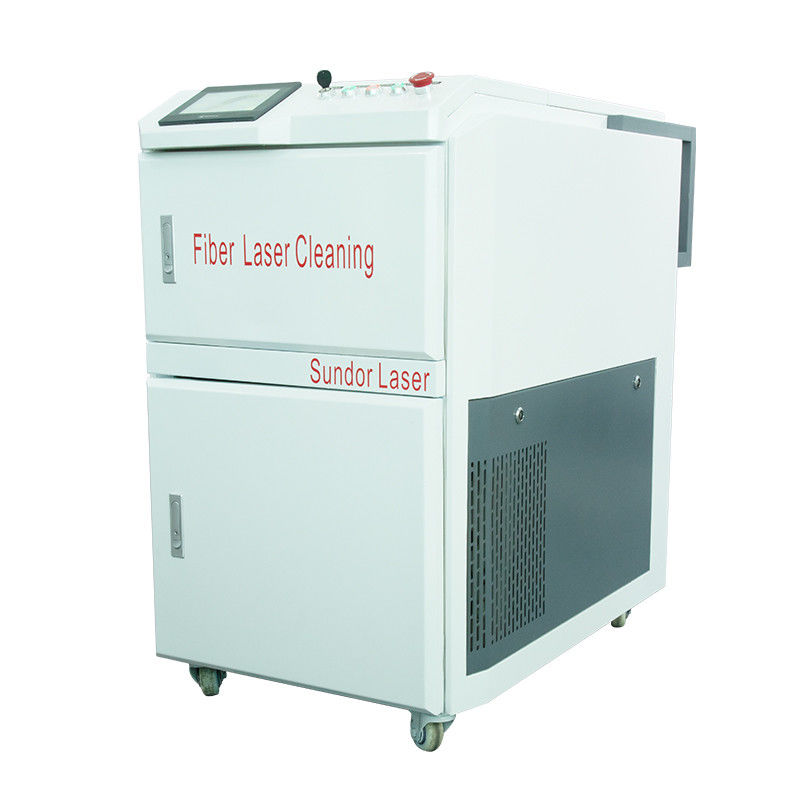

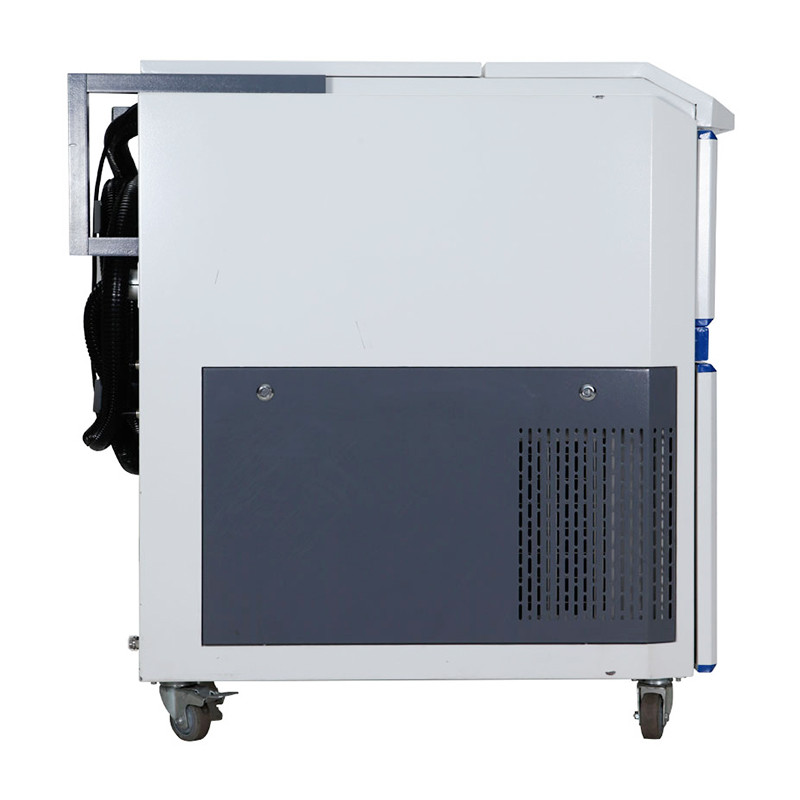

High Speed 100w Hand Held Fiber Laser Cleaning Machine For Metal Rust Removal

Basic Information
Place of Origin: Beijing, China
Brand Name: Sundor
Certification: BV, ce, ISO 9001:2000
Packaging Details: Wood case
Supply Ability: 500 Set/Sets per Month
Detail Information
Condition: New Power: 70W 100W 200W 500W 1000W
Applicable Material: Acrylic, Aluminum, Metal Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Hot Product 2019
Warranty Of Core Components: 3 Years Core Components: Laser
Laser Type: Fiber Laser Dimension(L*W*H): 760*780*790mm
Laser Source Brand: RAYCUS Laser Head Brand: Galvonometer
Weight (KG): 200 KG Key Selling Points: Long Service Life
Warranty: 2 Years Applicable Industries: Advertising Company, Energy & Mining, Machinery Repair Shops, Manufacturing Plant
Local Service Location: Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Pakistan, Mexico, Russia, Spain, South Korea After-sales Service Provided: Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Free Spare Parts, Online Support, Video Technical Support
Wavelength: 1064nm Laser Power: 70W
Laser Work Media: Yb Fiber Pulse Frequency: 20-100KHZ
Type Of Cooling: Air Cooled Total Power: 500W
High Light:

Hand Held Fiber Laser Cleaning Machine

,

100w Laser Cleaning Machine

,

High Speed metal rust removal laser


Product Description

High speed 100w hand held fiber laser cleaning machine for metal rust removal

Coating & Rust removal of laser cleaning machine

 High Speed 100w Hand Held Fiber Laser Cleaning Machine For Metal Rust Removal 0

Product Parameter

High Speed 100w Hand Held Fiber Laser Cleaning Machine For Metal Rust Removal 1



Model

SD-5C-050

SD-5C-070

SD-5C-100

SD-5C-200

SD-5C-350

Laser work media

YB Fiber

Laser power

50W

70W

100W

200W

350W

Laser wavelength

1064nm

Pulse frequency

20-100KHz

20-100KHz

20-200KHz

20-50KHz

20-50KHZ

Type of cooling

Air-Cooled

Air-Cooled

Air-Cooled

Water-Cooled

Water-Cooled

Cooling water



Deionized water

Deionized water

Water temperature

----------------

19

19

Dimensions

760mmX780X790mm

1100x950x700mm

Total weight

56kg

60kg

65kg

130kg (include water tank)

280kg (include water tank)

Total power

350W

500W

600W

1000W

1800W

Scan width

10-80mm

Choices

Handheld/Automatic

Working temperature

5-40

High Speed 100w Hand Held Fiber Laser Cleaning Machine For Metal Rust Removal 2

Product Superiority

 High Speed 100w Hand Held Fiber Laser Cleaning Machine For Metal Rust Removal 3



Advantage Comparison





Item

Laser Cleaning

Chemical Cleaning

Mechanical  Polish

Dry Ice (CO2) Cleaning

Ultrasonic cleaning

Cleaning Method

Laser and non-contact type

Chemical agent,Contact Cleaning

Mechanical/ abrasive paper, contact cleaning

Dry Ice (CO2), non-contact type

Cleaning agent,Contact type

Hurt for workpiece

No damage

With damage

With damage

No damage

No damage

Cleaning Efficiency

High

Low

Low

Medium

Medium

Consumable

Just with Electricity

Chemical cleaning agent

abrasive paper grinding wheel, oilstone

Dry Ice (CO2)

Special Cleaning Agent

Effective

Excellent with high cleanliness

Common,

 Non-uniform

Common, Non-uniform

Excellent , non-uniform

Excellent , small cleaning area

Accuracy

Precise Control, High Accuracy

Non-control,

Lowe Accuracy

Non-control,

Common Accuracy

Non-control,

Lowe Accuracy

Can not clear in special place

Safety / Pollution

No Pollution

Environment Pollution

Environment Pollution

No Pollution

No Pollution

Handling by workers

Simple Operation,

Handheld / Automation

Complex process,It is with high requirement for operator, must have preventive measure

With much labor cost and must have preventive measure

Simple Operation, Handheld / Automation

Simple Operation, but have to add consumables

Cost Comparison

High first Investment , No consumables ,

Low Maintenance Cost

Low first investment, Extremely High Consumables cost

High first Investment, high consumables cost & high labor cost

Medium first Investment, high consumables cost

Low first investment, Medium Consumables cost



Product Application

 High Speed 100w Hand Held Fiber Laser Cleaning Machine For Metal Rust Removal 4

Shipbuilding industry, Auto Part, Rubber Mold, High level machine tools, Tyre mold, Rail, Environmental Protection industry, Metal & Non-metal parts etc

High Speed 100w Hand Held Fiber Laser Cleaning Machine For Metal Rust Removal 5



Process Procedure

 High Speed 100w Hand Held Fiber Laser Cleaning Machine For Metal Rust Removal 6

High Speed 100w Hand Held Fiber Laser Cleaning Machine For Metal Rust Removal 7
