| Place of Origin: | Beijing, China |
|---|---|
| Brand Name: | Sundor |
| Certification: | BV, ce, ISO 9001:2000 |
| Price: | $15,000.00 - $54,500.00/sets |
| Packaging Details: | Wood case |
| Supply Ability: | 500 Set/Sets per Month |
| Condition: | New | Power: | 100W 200W 500W |
|---|---|---|---|
| Applicable Material: | Acrylic, Aluminum, Metal | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Years |
| Core Components: | Laser Source | Laser Type: | Pulse Laser |
| Dimension(L*W*H): | 760*780*790mm | Laser Source Brand: | RAYCUS |
| Laser Head Brand: | Galvonometer | Guiderail Brand: | Sundor |
| Control System Brand: | Sundor | Weight (KG): | 199 KG |
| Key Selling Points: | Long Service Life | Applicable Industries: | Advertising Company, Energy & Mining, Machinery Repair Shops, Manufacturing Plant |
| After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Free Spare Parts, Online Support, Video Technical Support | Wavelength: | 1064nm |
| Laser Power: | 100W | Laser Work Media: | Yb Fiber |
| Pulse Frequency: | 20-100KHZ | Type Of Cooling: | Air Cooled |
| Total Power: | 500W | Application: | Rubber Molds |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Port: | Beijing/Tianjin/Jinan |
| Highlight: | Portable Laser Cleaning Machine,100KH Laser Cleaning Machine,20KH laser cleaner rust removal |
||

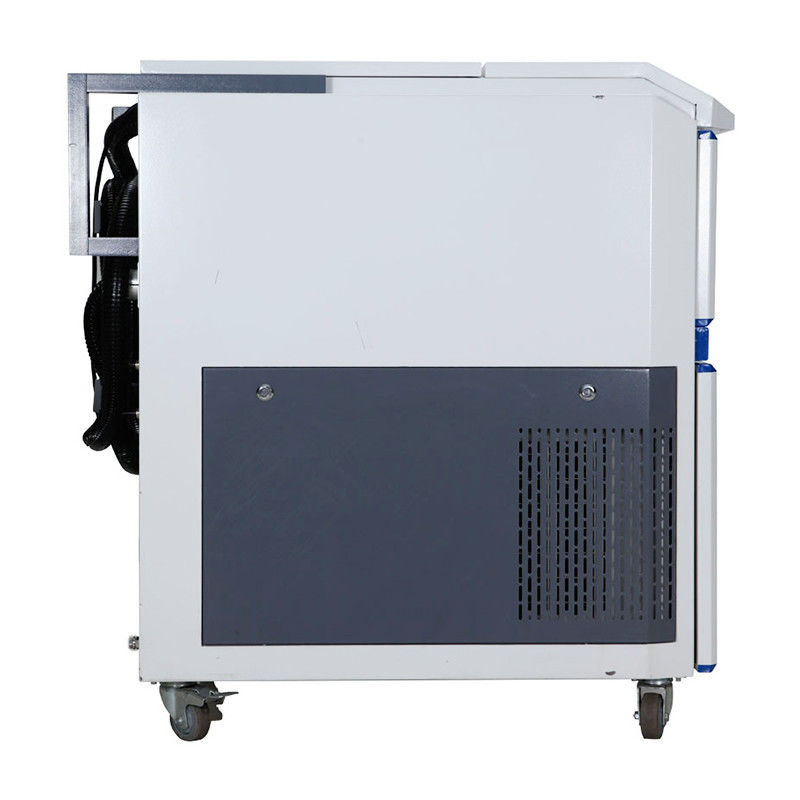

Portable Fiber Laser Rust Removal Machine Laser Cleaning Machine for cleaning rusty metal
Coating & Rust removal of laser cleaning machine
|
Model |
SD-5C-050 |
SD-5C-070 |
SD-5C-100 |
SD-5C-200 |
SD-5C-350 |
|
|
Laser work media |
YB Fiber |
|||||
|
Laser power |
50W |
70W |
100W |
200W |
350W |
|
|
Laser wavelength |
1064nm |
|||||
|
Pulse frequency |
20-100KHz |
20-100KHz |
20-200KHz |
20-50KHz |
20-50KHZ |
|
|
Type of cooling |
Air-Cooled |
Air-Cooled |
Air-Cooled |
Water-Cooled |
Water-Cooled |
|
|
Cooling water |
|
Deionized water |
Deionized water |
|||
|
Water temperature |
---------------- |
19℃ |
19℃ |
|||
|
Dimensions |
760mmX780X790mm |
1100x950x700mm |
||||
|
Total weight |
56kg |
60kg |
65kg |
130kg (include water tank) |
280kg (include water tank) |
|
|
Total power |
350W |
500W |
600W |
1000W |
1800W |
|
|
Scan width |
10-80mm |
|||||
|
Choices |
Handheld/Automatic |
|||||
|
Working temperature |
5-40℃ |
|||||
|
Item |
Laser Cleaning |
Chemical Cleaning |
Mechanical Polish |
Dry Ice (CO2) Cleaning |
Ultrasonic cleaning |
|
Cleaning Method |
Laser and non-contact type |
Chemical agent,Contact Cleaning |
Mechanical/ abrasive paper, contact cleaning |
Dry Ice (CO2), non-contact type |
Cleaning agent,Contact type |
|
Hurt for workpiece |
No damage |
With damage |
With damage |
No damage |
No damage |
|
Cleaning Efficiency |
High |
Low |
Low |
Medium |
Medium |
|
Consumable |
Just with Electricity |
Chemical cleaning agent |
abrasive paper grinding wheel, oilstone |
Dry Ice (CO2) |
Special Cleaning Agent |
|
Effective |
Excellent with high cleanliness |
Common, Non-uniform |
Common, Non-uniform |
Excellent , non-uniform |
Excellent , small cleaning area |
|
Accuracy |
Precise Control, High Accuracy |
Non-control, Lowe Accuracy |
Non-control, Common Accuracy |
Non-control, Lowe Accuracy |
Can not clear in special place |
|
Safety / Pollution |
No Pollution |
Environment Pollution |
Environment Pollution |
No Pollution |
No Pollution |
|
Handling by workers |
Simple Operation, Handheld / Automation |
Complex process,It is with high requirement for operator, must have preventive measure |
With much labor cost and must have preventive measure |
Simple Operation, Handheld / Automation |
Simple Operation, but have to add consumables |
|
Cost Comparison |
High first Investment , No consumables , Low Maintenance Cost |
Low first investment, Extremely High Consumables cost |
High first Investment, high consumables cost & high labor cost |
Medium first Investment, high consumables cost |
Low first investment, Medium Consumables cost |
Shipbuilding industry, Auto Part, Rubber Mold, High level machine tools, Tyre mold, Rail, Environmental Protection industry, Metal & Non-metal parts etc
