Power: | 1000W 2000W 3000W | Applicable Material: | Acrylic, Aluminum, Metal |
---|---|---|---|
Machinery Test Report: | Provided | Marketing Type: | Cleaning Rust Paint |
Laser Type: | Continuous Fiber Laser | Dimension(L*W*H): | 760*780*790mm |
Laser Source Brand: | RAYCUS | Laser Head Brand: | Galvonometer |
Weight (KG): | 300 KG | Key Selling Points: | Long Service Life |
Warranty: | 1 Years | Applicable Industries: | Advertising Company, Energy & Mining, Machinery Repair Shops, Manufacturing Plant |
After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Free Spare Parts, Online Support, Video Technical Support | Pulse Frequency: | 20-100KHZ |
Type Of Cooling: | Water Cooled | ||
High Light: | Rust Fiber Laser Cleaning Machine,RAYCUS Laser Cleaning Machine,Laser Cleaner Paint Removal Machine |

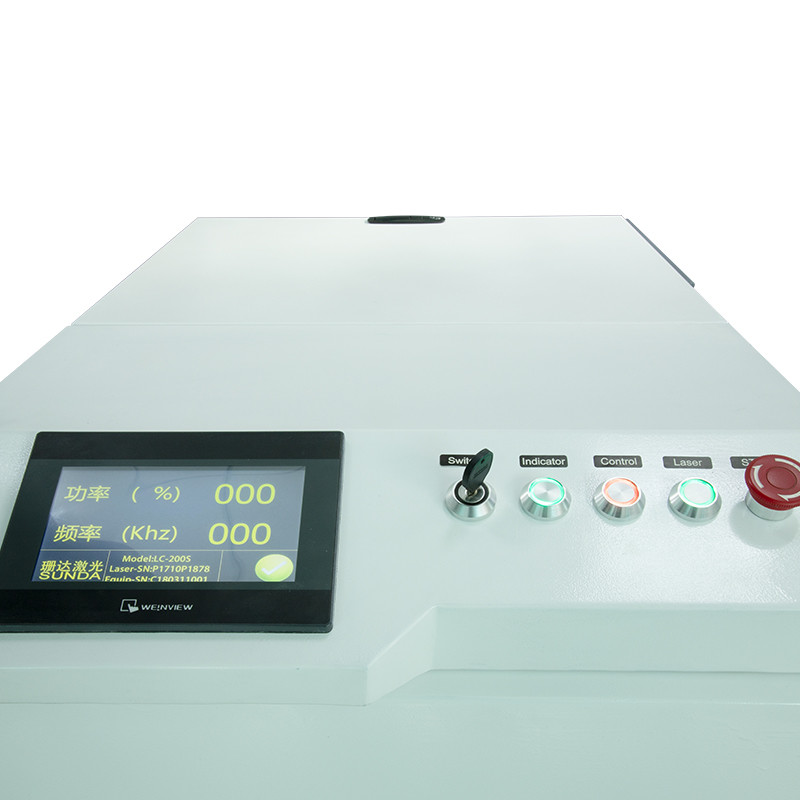

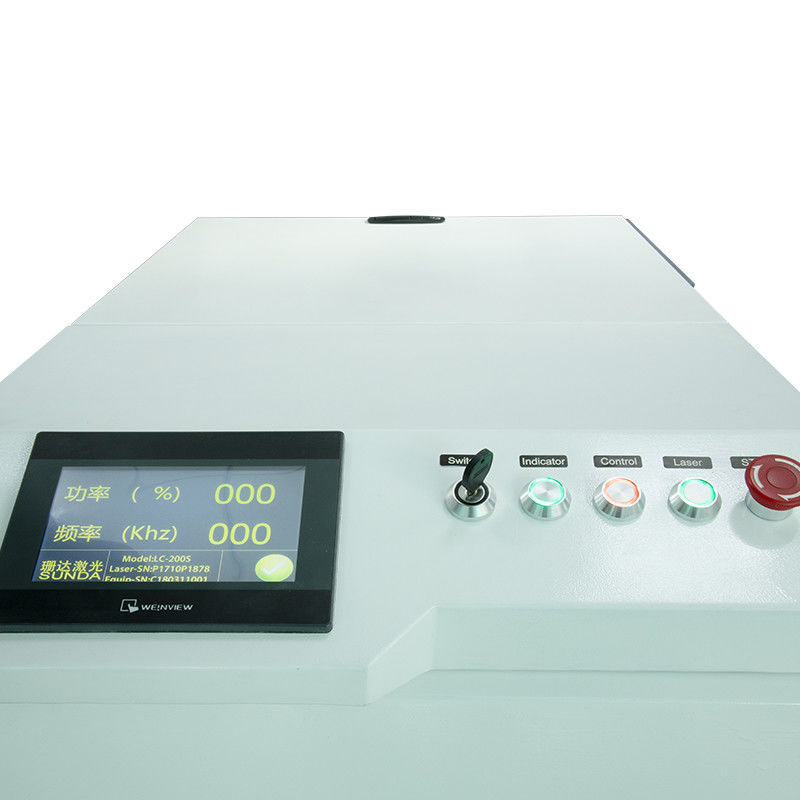

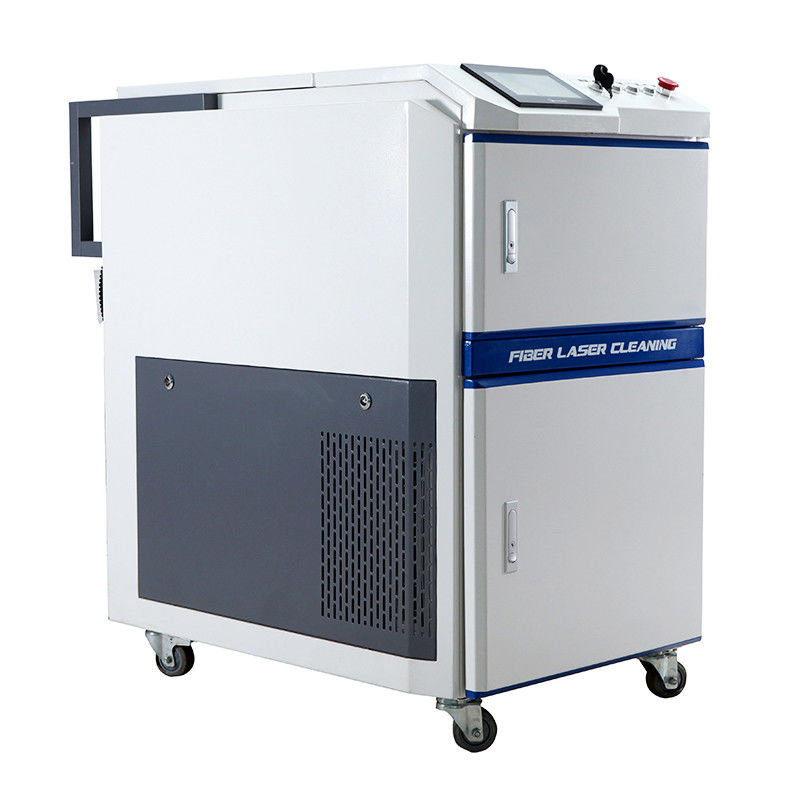

Laser cleaner paint Removal Machine Rust fiber Laser Cleaning Machine
Coating & Rust removal of laser cleaning machine
Model |
SD-5C-050 |
SD-5C-070 |
SD-5C-100 |
SD-5C-200 |
SD-5C-350 |
|
Laser work media |
YB Fiber |
|||||
Laser power |
50W |
70W |
100W |
200W |
350W |
|
Laser wavelength |
1064nm |
|||||
Pulse frequency |
20-100KHz |
20-100KHz |
20-200KHz |
20-50KHz |
20-50KHZ |
|
Type of cooling |
Air-Cooled |
Air-Cooled |
Air-Cooled |
Water-Cooled |
Water-Cooled |
|
Cooling water |
|
Deionized water |
Deionized water |
|||
Water temperature |
---------------- |
19℃ |
19℃ |
|||
Dimensions |
760mmX780X790mm |
1100x950x700mm |
||||
Total weight |
56kg |
60kg |
65kg |
130kg (include water tank) |
280kg (include water tank) |
|
Total power |
350W |
500W |
600W |
1000W |
1800W |
|
Scan width |
10-80mm |
|||||
Choices |
Handheld/Automatic |
|||||
Working temperature |
5-40℃ |
Item |
Laser Cleaning |
Chemical Cleaning |
Mechanical Polish |
Dry Ice (CO2) Cleaning |
Ultrasonic cleaning |
Cleaning Method |
Laser and non-contact type |
Chemical agent,Contact Cleaning |
Mechanical/ abrasive paper, contact cleaning |
Dry Ice (CO2), non-contact type |
Cleaning agent,Contact type |
Hurt for workpiece |
No damage |
With damage |
With damage |
No damage |
No damage |
Cleaning Efficiency |
High |
Low |
Low |
Medium |
Medium |
Consumable |
Just with Electricity |
Chemical cleaning agent |
abrasive paper grinding wheel, oilstone |
Dry Ice (CO2) |
Special Cleaning Agent |
Effective |
Excellent with high cleanliness |
Common, Non-uniform |
Common, Non-uniform |
Excellent , non-uniform |
Excellent , small cleaning area |
Accuracy |
Precise Control, High Accuracy |
Non-control, Lowe Accuracy |
Non-control, Common Accuracy |
Non-control, Lowe Accuracy |
Can not clear in special place |
Safety / Pollution |
No Pollution |
Environment Pollution |
Environment Pollution |
No Pollution |
No Pollution |
Handling by workers |
Simple Operation, Handheld / Automation |
Complex process,It is with high requirement for operator, must have preventive measure |
With much labor cost and must have preventive measure |
Simple Operation, Handheld / Automation |
Simple Operation, but have to add consumables |
Cost Comparison |
High first Investment , No consumables , Low Maintenance Cost |
Low first investment, Extremely High Consumables cost |
High first Investment, high consumables cost & high labor cost |
Medium first Investment, high consumables cost |
Low first investment, Medium Consumables cost |
Shipbuilding industry, Auto Part, Rubber Mold, High level machine tools, Tyre mold, Rail, Environmental Protection industry, Metal & Non-metal parts etc
