Application: | LASER CUTTING | Applicable Material: | Metal |
---|---|---|---|
Condition: | New | Laser Type: | Fiber Laser |
Cutting Area: | 3000*1500mm | Cutting Speed: | 0-24,000mm/min |
Graphic Format Supported: | AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT | Cutting Thickness: | 0.5-22mm |
CNC Or Not: | Yes | Cooling Mode: | WATER COOLING |
Control Software: | CypCut | Laser Source Brand: | RAYCUS |
Laser Head Brand: | Raytools | Servo Motor Brand: | Yaskawa |
Guiderail Brand: | HIWIN | Control System Brand: | Cypcut |
Weight (KG): | 4300 KG | Key Selling Points: | High Productivity |
Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
Warranty Of Core Components: | 2years | Core Components: | Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC |
Mode Of Operation: | Continuous Wave | Configuration: | 3-axis |
Products Handled: | Sheet Metal | Feature: | SERVO-MOTOR |
Laser Source: | Raycus/IPG | Position Accuracy: | ≤±0.02mm |
Min. Line Width: | ≤±0.12mm | ||
High Light: | Maxphotonics Raycus Laser Cutting Machine,6000W Raycus Laser Cutting Machine,CNC 1000W Laser Cutting Machine |

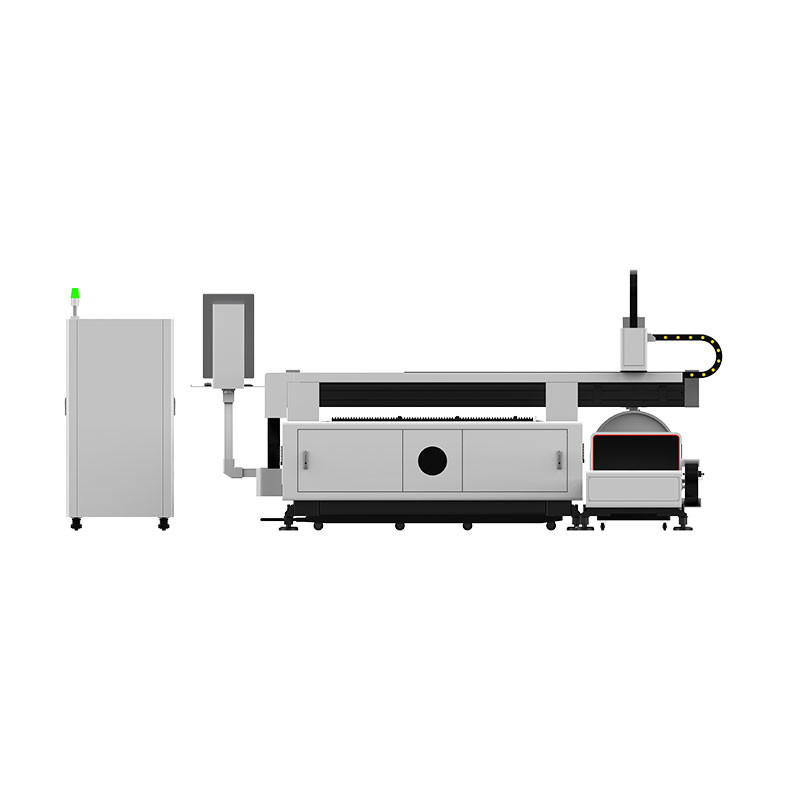

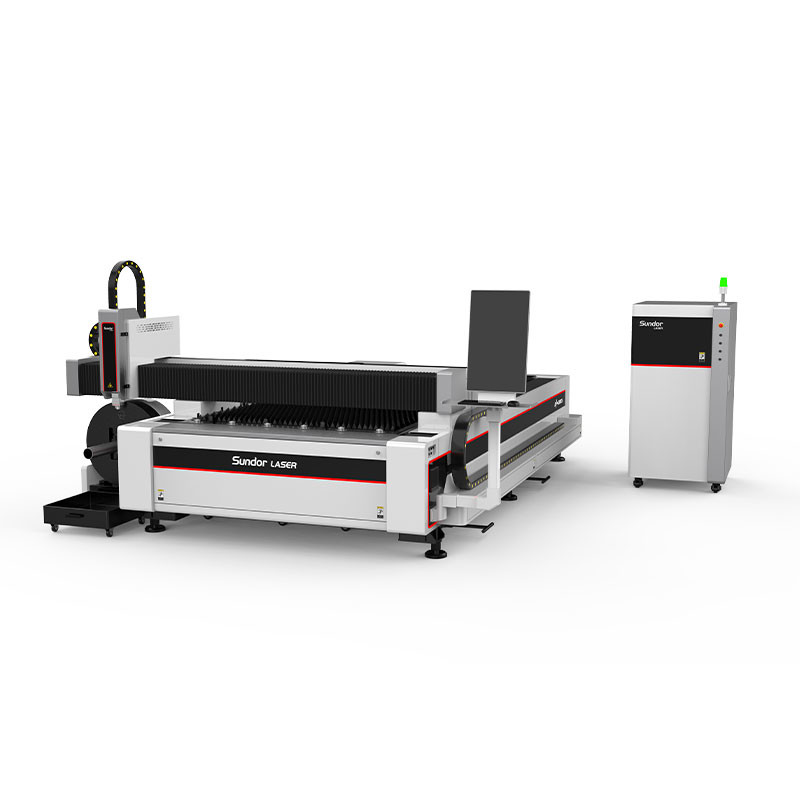

2022 1000W-6000W CNC Fiber Laser Cutting Machines for Metal Sheet Raycus / Maxphotonics Fiber Laser 3000*1500mm Cutting
Hot Sell SD-3015 Metal Fiber Laser Cutting Machine for Metal Plate, Caron Steel , SS, Aluminum Cutting
1000W Fiber Laser Cutting Machine is Promotion Now>>Contact Now
Laser Cutting machine is widely used in cutting and shaping for metal plates, pipes (pipe cutting plus pipe cutting device can be), stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass plate, aluminum plate, manganese steel, all kinds of alloy plates, rare metals etc.
Fiber laser cutting machine adopting world famous Germany fiber laser source and USA laser mech cutting head and dynamic focus system, it can cut and punch different kinds of metal material with high precision and high speed. Since laser is transmitted by fiber , it is no need to maintenance or adjusts the laser optical path , it greatly reduces the machines fault rate and prolongs the working life. Large format cutting area meets the demands of various kinds of metal processing .
It is widely used for carbon steel, stainless steel, aluminum and other metal materials cutting and forming, with high speed, high precision, high efficiency, cost-effective and energy saving. It is the first choice of the metal processing industry.
Equipment model |
SD-3015C SD-3015A |
Laser type |
fiber-optic laser |
Laser working medium |
optical fiber |
Laser wavelength |
1060-1080 nm |
RATED OUTPUT POWER |
500W-3000W |
Beam quality |
<0.373mrad |
X-axis distance |
1500mm |
Y-axis distance |
3000mm |
Z axis distance |
120mm |
Effective cutting range |
3000*1500mm |
Positioning accuracy |
≤±0.02mm/m |
Repeat positioning accuracy |
≤±0.02mm/m |
Max. Moving speed |
120m/min |
Support graphic format |
PLT,AI,BMP,DST,DXF format (support for CORELDRAW, AI,PHOTOSHOP, AUTOCAD) |
Power Supply |
3P, AC 380V/50Hz/16A |
1.Excellent beam quality: Smaller focus diameter , high work efficiency, better processing quality.
2. High cutting speed: 2-3 times faster than YAG and CO2 laser .
3.High Stability: Adopt superior quality fiber laser, stable performance, key parts can reach .
4. High efficiency for photoelectric conversion : Compared with CO2 laser cutting machine, Fiber laser cutting machine has 3 times photoelectric conversion and with energy saving & friendly environment .
1. Low cost: The whole power consumption is only 20-30% of traditional CO2 laser cutting machine.
2.Low maintenance cost: It is with Optical fiber line transmission, no need reflector lens, can save a lot of maintenance cost.
3.Easy Operation : Fiber Line transmission, no adjustment of optical path.
4.Super-flexible optical effect : small volume, compact structure, easy to flexible manufacturing requirements .
Automobile manufacturing, machinery and equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising logo, car decoration, sheet metal production, lighting hardware, display equipment, precision parts, hardware products, subway accessories, decoration, textile machinery, food machinery , Construction machinery, ships, tooling, metallurgical equipment, aviation, aerospace and other manufacturing and processing industries;
Laser Cutting machine is suitable for variety of metal plates, pipes ( with special device ), stainless steel, carbon steel, galvanized sheet, pickling board, brass plate, aluminum plate, manganese steel, all kinds of alloy plates, rare metals etc.
After the machine reach the buyer’s site,the engineers from the seller are responsible for machine installation and commissioning by using the special tools under the help of the buyer. Buyer should pay for our engineer visa fee, air tickets, accommodation, meals etc.
The common protection knowledge of laser safety
The basic principle of laser module and the structure of laser cutting machine
The operation skills of fiber laser cutting machine
Equipment operation and the application notice
Skills of equipment daily maintenance,laser module adjustment and spare parts replacement.
Installation & training time is about 5 to 7 days.
Warranty & Service:
1). 2 years warranty for the whole machine
2). 2 years warranty for the fiber laser source
3). Life-long maintenance
4).In the warranty period,if it break down or some parts damaged(Except the human factors and the factors of force majeure),the seller should be responsible for repair for free,the parts need to be replaced will be provided from seller for free(Except the quick-wear part).
5)After warranty we will still supply lifetime maintenance in free. Just if parts broken, we will replace with charge.
6).After sales service response time: quick response within 8 working hours,after receive the repair call, our after sales engineer will reply as soon as possible.
ABOUT SUNDOR
FAQ for Laser Cutting Machine:
Q1: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you the solution; you can share us what material will you cut, the material thickness and working size.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
We will send English manual and Operation Video and for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: May we know the speed of your Fiber Laser Cutting Machine as per on our demand basis?
We use Japan Servo motor and driver with big strength, so the max moving speed can reach 120m/min, max cutting speed can reach 40m/min. And the speed can reach 1.5-2m/min if you cut 4.5-5mm stainless steel.
Q4: If some problems happen to this machine, what should I do?
We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q5: About accuracy, we have observed that after some time "Machine accuracy can increase gradually" and after long time, the difference reach to its maximum level. How about your machine?
The frame of the machine is annealed, it can support shock resistance(the machine will deform if without annealing ). So the accuracy of the machine can keep its original accuracy for 4-5years. The weight of the machine can reach 4.5t-5.0t. It also can let the machine have higher accuracy and higher stability.
Q6: What’s package, will it protect the products?
A: Nude Packing for big parts after plastic film covering. The small parts packed into wooden cases which is suitable for seaworthy transportation.
Q7: How is the shipping method?
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your worksite as per your requirement .
