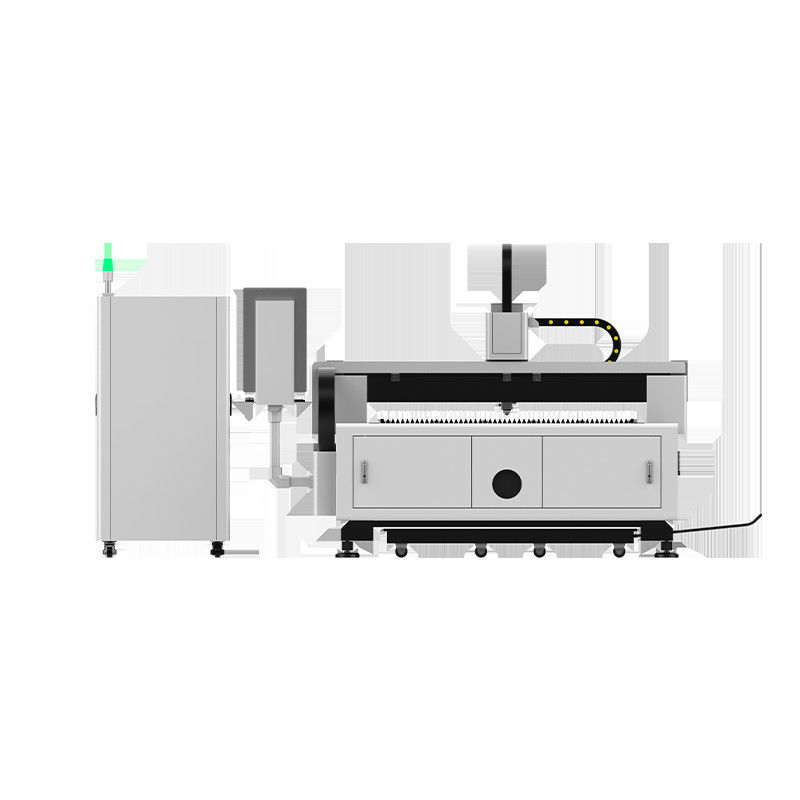

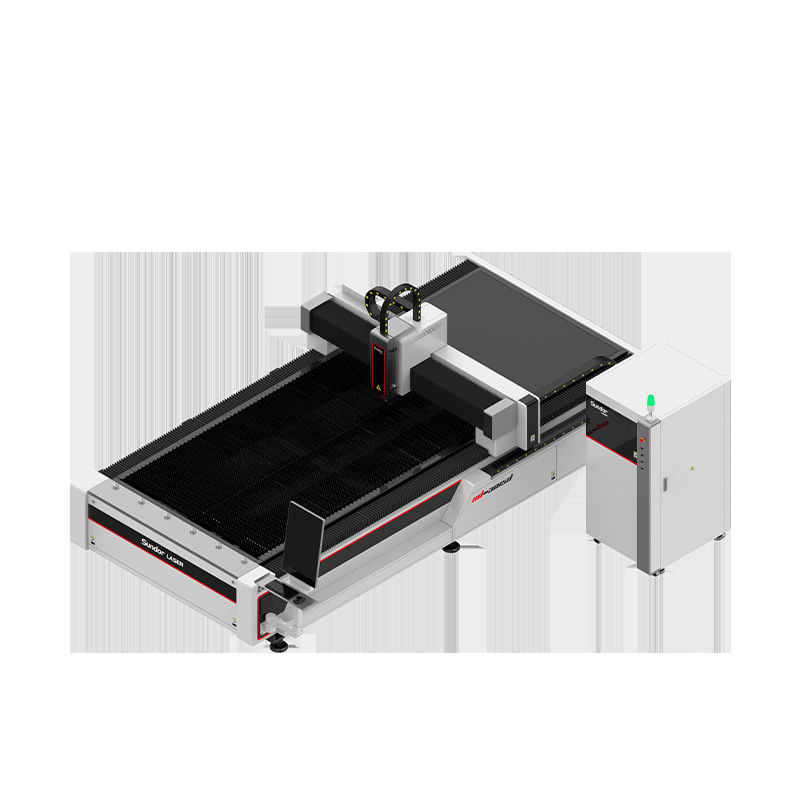

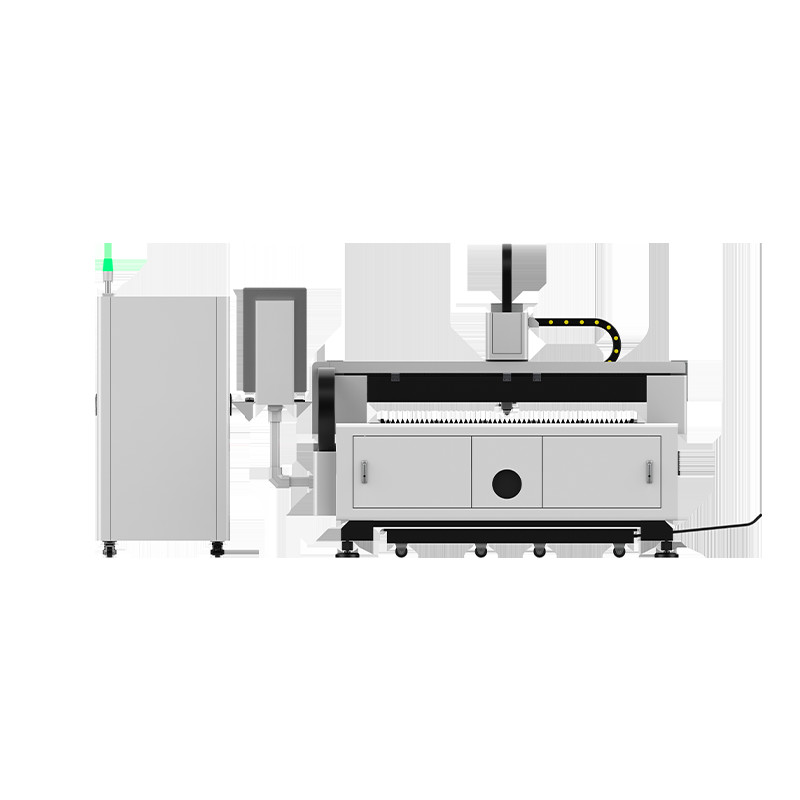

SUNDOR 1KW 2KW 3KW 4KW CNC Fiber Laser Cutter For Steel Aluminum Sheet

Basic Information
Place of Origin: Beijing, China
Brand Name: SUNDOR
Supply Ability: 100 Set/Sets per Month
Detail Information
Application: LASER CUTTING Applicable Material: Metal
Condition: New Laser Type: Fiber Laser
Cutting Area: 3000*1500mm Cutting Speed: 0-24,000mm/min
Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT Cutting Thickness: 0.5-22mm
CNC Or Not: Yes Cooling Mode: WATER COOLING
Control Software: CypCut Laser Source Brand: RAYCUS
Laser Head Brand: Raytools Servo Motor Brand: Yaskawa
Guiderail Brand: HIWIN Control System Brand: Cypcut
Weight (KG): 4300 KG Key Selling Points: High Productivity
Warranty: 3 Years Applicable Industries: Advertising Company, Construction Works , Machinery Repair Shops, Manufacturing Plant, Building Material Shops
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 3 Years Core Components: Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Mode Of Operation: Continuous Wave Configuration: 3-axis
Products Handled: Sheet Metal Feature: SERVO-MOTOR
Laser Source: Raycus/IPG Position Accuracy: ≤±0.02mm
Wavelength: 1064-1080nm After Sales Service: Engineers Available To Service Machinery Overseas
Max. Moving Speed: 120m/min Min. Line Width: ≤±0.12mm
High Light:

4KW CNC Fiber Laser Cutter

,

3KW CNC Fiber Laser Cutter

,

SUNDOR 1KW Fiber Laser Cutter


Product Description

2022 SUNDOR 1000W 2000W 3000W 4kw CNC Fiber Laser Cutter for steel aluminum Sheet Metal wuhan Raycus Fiber laser cutting

SUNDOR 1KW 2KW 3KW 4KW CNC Fiber Laser Cutter For Steel Aluminum Sheet 0

Hot Sell SD-3015 Metal Fiber Laser Cutting Machine for Metal Plate, Caron Steel , SS, Aluminum Cutting

1000W Fiber Laser Cutting Machine is Promotion Now>>Contact Now



Product Parameter



Laser Cutting machine is widely used in cutting and shaping for metal plates, pipes (pipe cutting plus pipe cutting device can be), stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass plate, aluminum plate, manganese steel, all kinds of alloy plates, rare metals etc.

SUNDOR 1KW 2KW 3KW 4KW CNC Fiber Laser Cutter For Steel Aluminum Sheet 1

Fiber laser cutting machine adopting world famous Germany fiber laser source and USA laser mech cutting head and dynamic focus system, it can cut and punch different kinds of metal material with high precision and high speed. Since laser is transmitted by fiber , it is no need to maintenance or adjusts the laser optical path , it greatly reduces the machines fault rate and prolongs the working life. Large format cutting area meets the demands of various kinds of metal processing .



It is widely used for carbon steel, stainless steel, aluminum and other metal materials cutting and forming, with high speed, high precision, high efficiency, cost-effective and energy saving. It is the first choice of the metal processing industry.



Equipment model

SD-3015C  SD-3015A

Laser type

fiber-optic laser

Laser working medium

optical fiber

Laser wavelength

1060-1080 nm

RATED OUTPUT POWER



500W-3000W

Beam quality

<0.373mrad

X-axis distance

1500mm

Y-axis distance

3000mm

Z axis distance

120mm

Effective cutting range

3000*1500mm

Positioning accuracy

≤±0.02mm/m

Repeat positioning accuracy

≤±0.02mm/m

Max. Moving speed

120m/min

Support graphic format

PLT,AI,BMP,DST,DXF format (support for CORELDRAW, AI,PHOTOSHOP, AUTOCAD)

Power Supply

3P, AC 380V/50Hz/16A



Product Features

SUNDOR 1KW 2KW 3KW 4KW CNC Fiber Laser Cutter For Steel Aluminum Sheet 2

1.Excellent beam quality: Smaller focus diameter , high work efficiency, better processing quality.

2. High cutting speed: 2-3 times faster than YAG and CO2 laser .

3.High Stability:  Adopt superior quality fiber laser, stable performance, key parts can reach .

4. High efficiency for photoelectric conversion : Compared with CO2 laser cutting machine, Fiber laser cutting machine has 3 times photoelectric conversion and with energy saving & friendly environment .

SUNDOR 1KW 2KW 3KW 4KW CNC Fiber Laser Cutter For Steel Aluminum Sheet 31. Low cost: The whole power consumption is only 20-30% of traditional CO2 laser cutting machine.

2.Low maintenance cost: It is with Optical fiber line transmission, no need reflector lens, can save a lot of maintenance cost.

3.Easy Operation : Fiber Line transmission, no adjustment of optical path.

4.Super-flexible optical effect : small volume, compact structure, easy to flexible manufacturing requirements .

Product Details

 SUNDOR 1KW 2KW 3KW 4KW CNC Fiber Laser Cutter For Steel Aluminum Sheet 4

Product Application



Automobile manufacturing, machinery and equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising logo, car decoration, sheet metal production, lighting hardware, display equipment, precision parts, hardware products, subway accessories, decoration, textile machinery, food machinery , Construction machinery, ships, tooling, metallurgical equipment, aviation, aerospace and other manufacturing and processing industries;



Laser Cutting machine is suitable for variety of metal plates, pipes ( with special device ), stainless steel, carbon steel, galvanized sheet, pickling board, brass plate, aluminum plate, manganese steel, all kinds of alloy plates, rare metals etc.



SUNDOR 1KW 2KW 3KW 4KW CNC Fiber Laser Cutter For Steel Aluminum Sheet 5

Trade Information
packing:Nude Packing for big parts after plastic film covering.
The small parts packed into wooden cases.
SUNDOR 1KW 2KW 3KW 4KW CNC Fiber Laser Cutter For Steel Aluminum Sheet 6
Payment: TT , LC ,Westem Union ,Paypal,E-Checking,Master Card Cash etc.
SUNDOR 1KW 2KW 3KW 4KW CNC Fiber Laser Cutter For Steel Aluminum Sheet 7





Product Application

 SUNDOR 1KW 2KW 3KW 4KW CNC Fiber Laser Cutter For Steel Aluminum Sheet 8

Installation & training:

After the machine reach the buyer’s site,the engineers from the seller are responsible for machine installation and commissioning by using the special tools under the help of the buyer. Buyer should pay for our engineer visa fee, air tickets, accommodation, meals etc.

Training:

The common protection knowledge of laser safety

The basic principle of laser module and the structure of laser cutting machine

The operation skills of fiber laser cutting machine

Equipment operation and the application notice

Skills of equipment daily maintenance,laser module adjustment and spare parts replacement.

Installation & training time is about 5 to 7 days.



Warranty & Service:



1). years warranty for the whole machine

2). 2 years warranty for the fiber laser source

3). Life-long maintenance

4).In the warranty period,if it break down or some parts damaged(Except the human factors and the factors of force majeure),the seller should be responsible for repair for free,the parts need to be replaced will be provided from seller for free(Except the quick-wear part).

5)After warranty we will still supply lifetime maintenance in free. Just if parts broken, we will replace with charge.

6).After sales service response time: quick response within 8 working hours,after receive the repair call, our after sales engineer will reply as soon as possible.



Advantage Comparison

 ABOUT SUNDOR



Beijing Sundor Laser Equipment Co.,Ltd is an integrated modern enterprise with R&D , Producing, Sales and After-Sales Service for various industrial laser equipment involving fiber laser marking machine , fiber laser cutting machine, CO2 laser marking machine, CO2 laser welding machine.
All of Sundor Laser Equipments has passed ISO9001:2000 Certificate, EURO CE Certificate, USA  Certificate and SGS Inspection Certificate and meets various industry standard. We supply the professional service and mature solution for the customers in workpiece marking, cutting, welding, cleaning. Besides best-selling in China native, our products export to over 100 countries and regions like Germany, USA, Japan, Belgium, Spin, Russia , South Korea, Turkey, Brazil , Colombia, India, Dubai, Saudi Arabia, Indonesia, Philippines, Australia etc., All of our customers speak highly of our products and satisfy our service.

Our Quality Principle :  View quality as our Life, View Service as our foundation.

Our Pursuit :   To be international strongest & most competitive laser equipment manufacturer.

Our Object:  Take as much as profit for customers and create endless value for clients .

Sundor people warmly welcome every friend visit our factory and look forward to serve you .SUNDOR 1KW 2KW 3KW 4KW CNC Fiber Laser Cutter For Steel Aluminum Sheet 9
 SUNDOR 1KW 2KW 3KW 4KW CNC Fiber Laser Cutter For Steel Aluminum Sheet 10SUNDOR 1KW 2KW 3KW 4KW CNC Fiber Laser Cutter For Steel Aluminum Sheet 11SUNDOR 1KW 2KW 3KW 4KW CNC Fiber Laser Cutter For Steel Aluminum Sheet 12
FAQ



FAQ for Laser Cutting Machine:



Q1: I know nothing about this machine, what type of machine should I choose?

We will help you choose the suitable machine and share you the solution; you can share us what material will you cut, the material thickness and working size.



Q2: When I got this machine, but I don’t know how to use it. What should I do?

We will send English manual and Operation Video and for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.



Q3: May we know the speed of your Fiber Laser Cutting Machine as per on our demand basis?

We use Japan Servo motor and driver with big strength, so the max moving speed can reach 120m/min, max cutting speed can reach 40m/min. And the speed can reach 1.5-2m/min if you cut 4.5-5mm stainless steel.



Q4: If some problems happen to this machine, what should I do?

We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.



Q5: About accuracy, we have observed that after some time "Machine accuracy can increase gradually" and after long time, the difference reach to its maximum level. How about your machine?

The frame of the machine is annealed, it can support shock resistance(the machine will deform if without annealing ). So the accuracy of the machine can keep its original accuracy for 4-5years. The weight of the machine can reach 4.5t-5.0t. It also can let the machine have higher accuracy and higher stability.



Q6: What’s package, will it protect the products?

A: Nude Packing for big parts after plastic film covering. The small parts packed into wooden cases which is suitable for seaworthy transportation.



Q7: How is the shipping method?

A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your worksite as per your requirement .
