Condition: | New | Applicable Industries: | Advertising Company, Building Material Shops, Construction Works , Energy & Mining, Farms, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Garment Shops, Home Use, Hotels, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Restaurant, |
---|---|---|---|
Rated Power: | 300w, 300W | Engraving Speed: | 0-5 Letters/second, 0-5 Letters/second |
Main Axle Rotational Speed: | N/A, N/A | Feeding Height: | 0-350mm, 0-350mm |
Milling Cutter Diameter: | 1-5mm, 1-5mm | Application: | Metal And Some Hard Plastic |
Dimensions: | 340x440mm, 340x440mm | Weight: | ≤50kg, ≤50kg |
After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Free Spare Parts, Online Support, Video Technical Support | Repeat Accuracy: | 0.02-0.04mm |
Marking Materials: | Above HRC60 Need Special Stylus | ||
High Light: | 4mm Pneumatic Marking Machine,2.5mm Pneumatic Marking Machine,Vehicle Chassis Number Dot Peen Engraver |
Vehicle Chassis Number Dot Peen Marking Engraving Machine Portable Pneumatic Handheld Metal 2.5-4mm Marking Pin Metal Ma

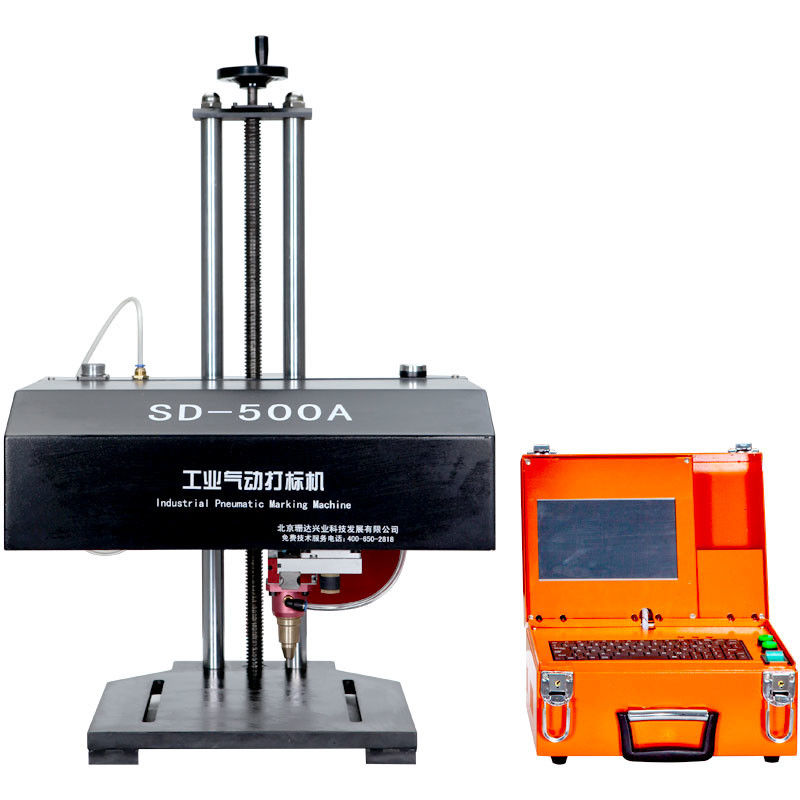

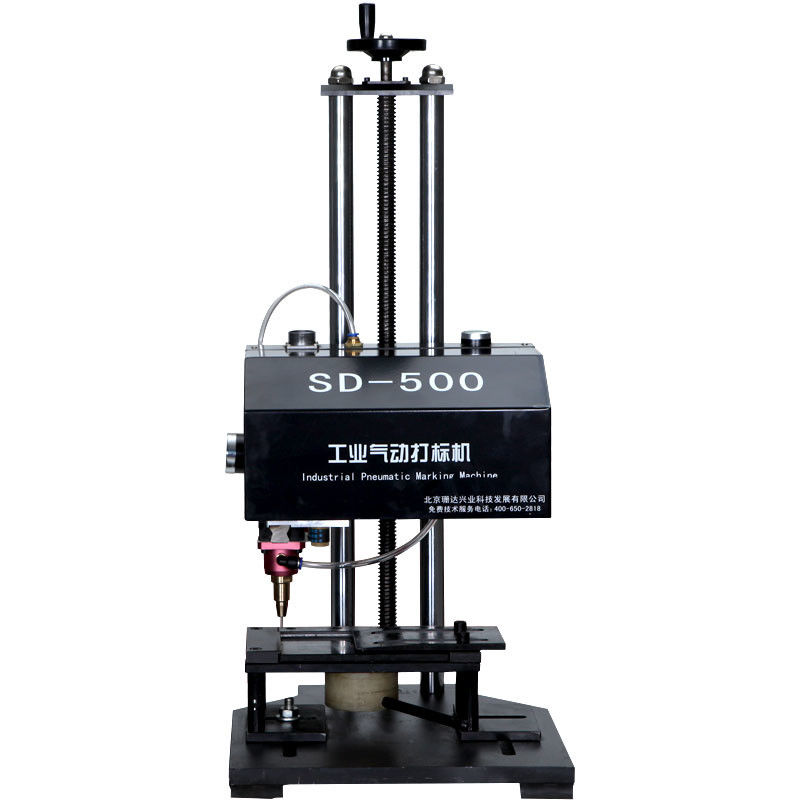

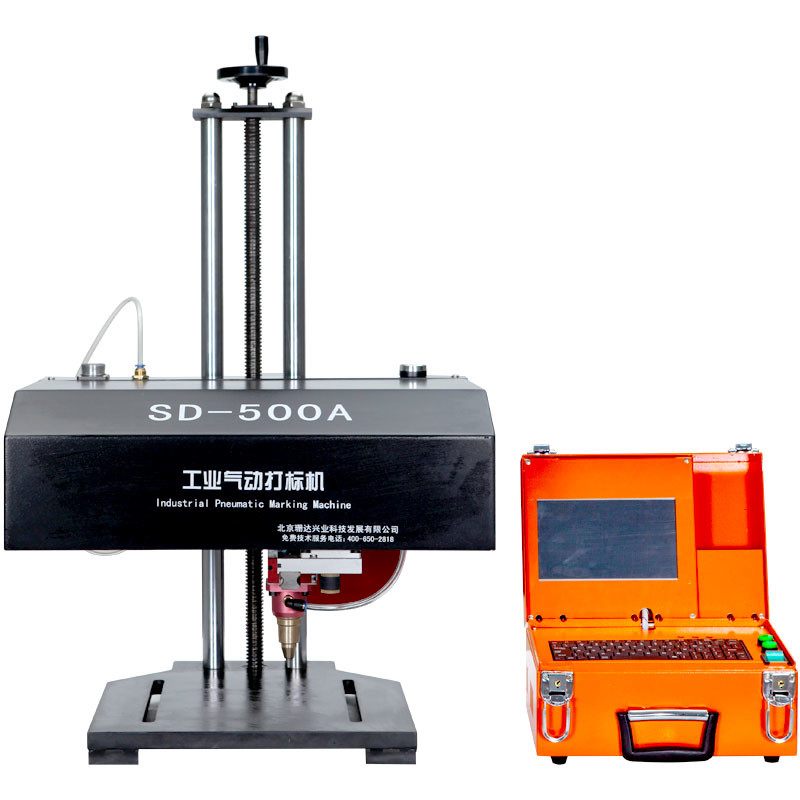

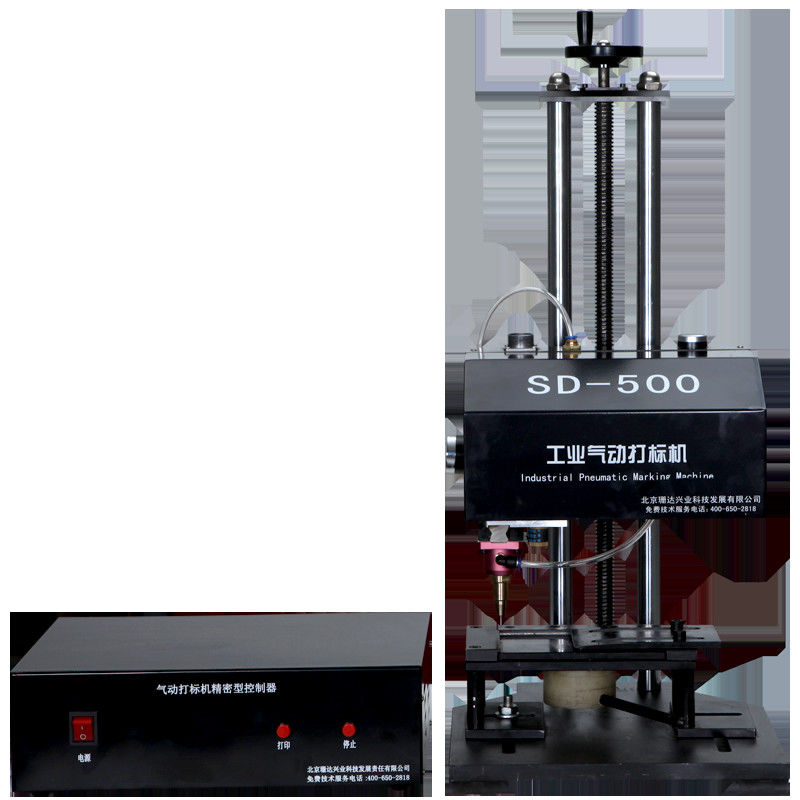

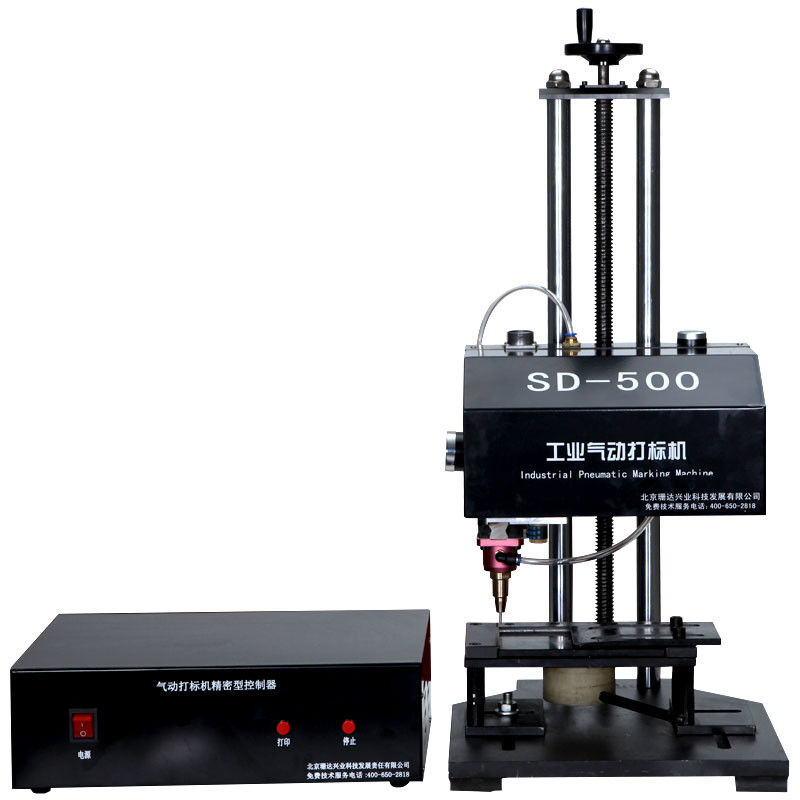

Portable touch screen dot peen marking machine for steel,pneumatic metal marking tools
By printing the Chinese and English characters, the contents of the graphics are input to the computer, and then the content is converted into digital control signals by computer marking software and sent to the controller to drive the printing. So as to hit the workpiece formed by a continuous lattice of characters and graphics.
Needle in X-Y two-dimensional plane according to the trajectory of the set movement, while the print pin under the action of compressed air on the workpiece surface printed by the dense lattice composed of concave mark.
Printing sped |
Straight line 80mm/sacond |
Print pin impact frequency |
300 times speed |
Printing depth |
0.012-0.6mm(depend on hardness of the material) |
Compressed air |
0.3-0.6 Mpa |
Print hardness of the workpiece |
<HRC60 |
Temperature |
0-55 Celsus |
Minimum character height |
1mm |
Humidty |
Relative humidity≤90% |
Motion positioning accuracy |
0.04mm |
Power consumption |
<400W |
Repeat printing accuracy |
0.04mm |
Power supply |
AC220V±10% 50HZ |
Print range |
Plane 140*80mm(Customizable) |
Total weight |
<60kg |
Product Application Fields of Pneumatic Dot Peen Marking Machine:
Pneumatic Dot Peen Marking Machine is applicable for the fields of automobile, motorcycle, mechanism, petroleum, aeronautical and space, electric apparatus and suitable for markings on steel, metal, nonmetal and hard plastic materials.
Pneumatic Dot Peen Marking Machine is adequate for marking logos, characters, serials numbers and VIN codes on bodywork of motorcycles, nameplates, connecting rods, engines, mechanical parts, machine tools, fastening pieces and various hard plastic products.
Q1: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you the solution; you can share us what material will you marking / engraving and the depth of MARKING/ ENGRAVING.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: If some problems happen to this machine, what should I do?
We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q4: What’s consumables of Pneumatic marking machine?
A: The main consumable is the marking needle, we will match you 3 pcs for free.
Q5: What’s package, will it protect the products?
A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
Q6: What’s delivery time?
A: Commonly, the lead time is within 5 working days after receiving the payment.
Q7: What payment terms can you accept?
A: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.
Q8: How is the shipping method?
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
