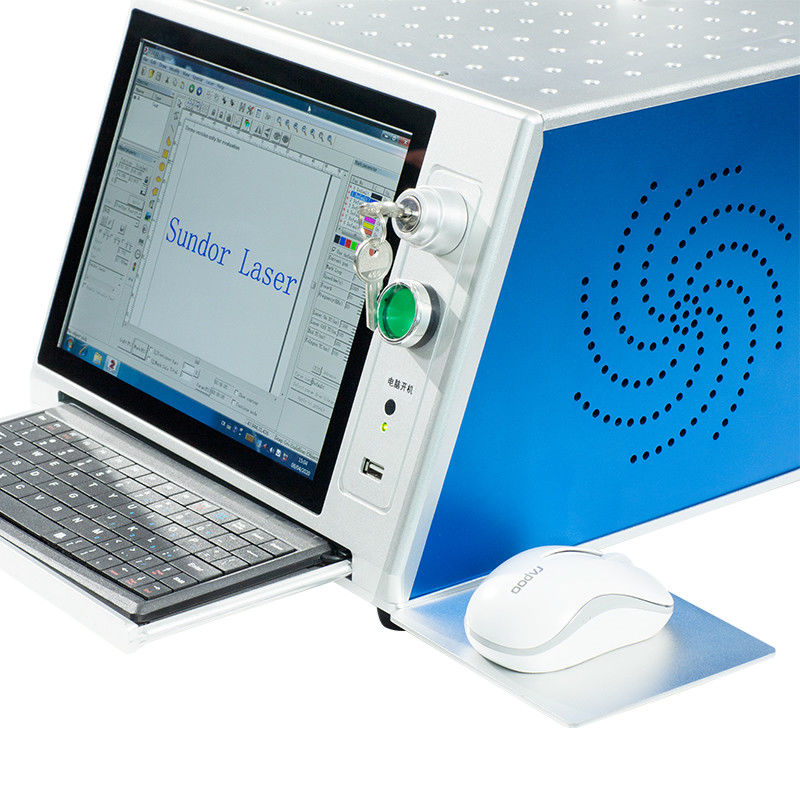

Mini Diagonal screen with computer type fiber laser marking machine Metal marking

Basic Information
Place of Origin: Beijing, China
Brand Name: sundor
Certification: ce, ISO
Minimum Order Quantity: 1
Price: $1690/sets 1-9 sets
Packaging Details: Wooden Box Comply with International Export Standard
Supply Ability: 9999 Set/Sets per Month
Detail Information
Application: Laser Marking Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, DXP, LAS
Control Software: EZCAD Warranty Of Core Components: 2 Years
Laser Source: Raycus Working Area: 110*110 /150*150/175*175/ 200*200/300*300mm
Usage: Do The Jewelry Engraving And Cutting Marking Material: Glod,silver,brass,stainless Steel

Product Description

Deep Marker 20W 30W 50W Fiber Laser Marking Machine For Jewelry

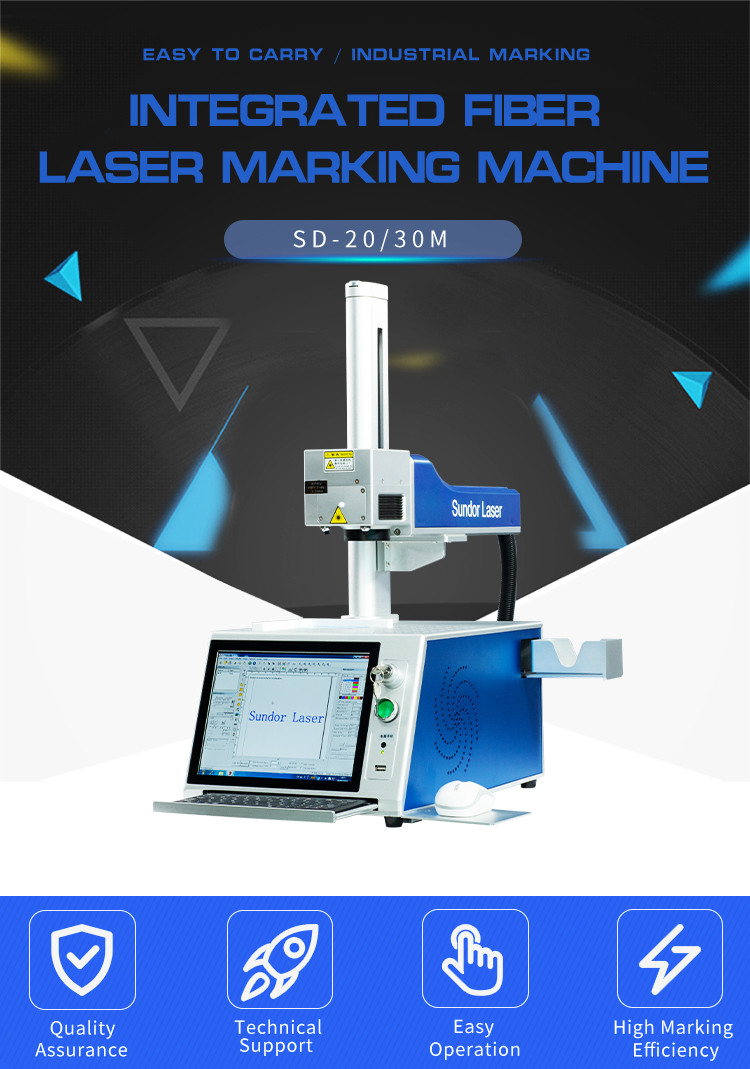

Mini Diagonal screen with computer type fiber laser marking machine Metal marking 0

What Is Fiber Laser Marking Machine?


Fiber laser making machine is a new type of CNC laser engraving system that uses fiber laser generator to etch a permanent mark on 2D & 3D surfaces of metals, nonmetals, and metalloids, which is used in hobbyist, small business, small shop, home use, home business, school education, commercial use, and industrial manufacturing. It uses a high-energy 1064nm laser beam to remove excess parts on the surface of the substrate and engrave permanent photos, patterns, or text. Its professional for fine metal engraving with high precision, high quality, and high speed. With a rotary attachment, it can etch on cylinders such as pens, rings, tools, cups, mugs, and tumblers. The higher laser power allows deep engraving of metals and even cutting of thin metals.



Product Description



Product Name Fast Speed 50W Laser Marking Machine For Pipe And Hardware
Laser Type Fiber
Modol
Certificatons CE, ISO,OTHER
Power 20W 30W,50W
Brand SUNDOR
Country of Origin CHINA
Work Precision ±0.01mm
Support Format PLT, DST, AI, DXF, BMP, JPG, CAD,CDR, DWG,PCX
Software EZCAD
Cooling Way AIR COOLING
NC YES
Condition NEW
Warranty 36 Months
Work Area (mm) 110x110/175x175(Customized)
Min Line Width 0.017mm
Min Character 0.15mmx0.15mm
Wavelength 1064nm
After-Service Engineers available to service machinery overseas
Laser Repetition Frequency: 20KHz-80KHz(adjustable)
Power Demand AC220V/50HZ/2A
Optimum Working Temperature 10-40 °C
Marking Depth 0.01-1.0mm(subjejct to material)

Mini Diagonal screen with computer type fiber laser marking machine Metal marking 1Mini Diagonal screen with computer type fiber laser marking machine Metal marking 2


Product Features

Mini Diagonal screen with computer type fiber laser marking machine Metal marking 3





1.    The fiber laser generator is high integrated, has superior laser beam and uniform power density. Output laser power is stable. This design highly increase the machine’s anti-reflection ability with optical isolator, be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.



2.    Adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and performance reached the international advanced level.



3.    Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled inside, small occupation, easy to install.



4.    Adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and powerful control system, can meet the demand of most industry application process in market.



5.    High efficiency for photoelectric conversion, simple operation, Compact in structure, support harsh working environment, no consumables.



6.    YLH-20E fiber laser marking machine is portable. Power box and laser source can be separated. Easy transport and can be displayed separately according to user’s site space situation.



Mini Diagonal screen with computer type fiber laser marking machine Metal marking 4
 Mini Diagonal screen with computer type fiber laser marking machine Metal marking 5







Applicable Industries:



Precision instruments, computer keyboards, auto parts, plumbing parts, communications equipment, medical equipment , bathroom equipment, hardware tools, luggage decoration, electronic components, home appliances, watches, molds, gaskets and Seals, data matrix, jewelry, cell phone keyboard, buckle, kitchenware, knives, cooker, stainless steel products, aerospace equipment, integrated circuit chips, computer accessories, signs molds, elevator equipment, wire and cable , Industrial bearings, building materials, hotel kitchen, military, pipelines.

Tobacco industry, bio-pharmaceutical industry, liquor industry, food packaging, beverage, health care products, plastic buttons, bathing supplies, business cards, Clothing accessories, cosmetics packaging, car decoration, wood, logos, characters, serial number, bar code, PET, ABS, pipeline, advertising logo and other non-metallic industries.

 Mini Diagonal screen with computer type fiber laser marking machine Metal marking 6

Applied Materials:

1. All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition

2. Non-metallic: non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothes , wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material

Mini Diagonal screen with computer type fiber laser marking machine Metal marking 7

Related Products
Mini Diagonal screen with computer type fiber laser marking machine Metal marking 8

Packaging


1.Standard wooden cases with sponge filled inside for packing protection
2. The Wooden case is fumigation free which is suitable by sea & by air.
3. Customized Packing as per Customer's requirement.

Mini Diagonal screen with computer type fiber laser marking machine Metal marking 9



Mini Diagonal screen with computer type fiber laser marking machine Metal marking 10

Company Information

 Mini Diagonal screen with computer type fiber laser marking machine Metal marking 11

Mini Diagonal screen with computer type fiber laser marking machine Metal marking 12

Mini Diagonal screen with computer type fiber laser marking machine Metal marking 13


FAQ



Q1: I know nothing about this machine, what type of machine should I choose?

We will help you choose the suitable machine and share you the solution; you can share us what material will you marking / engraving and the depth of MARKING/ ENGRAVING.



Q2: When I got this machine, but I don’t know how to use it. What should I do?

We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.



Q3: If some problems happen to this machine, what should I do?

We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.



Q4: What’s consumables of laser marking machine?

A: It does not have consumable. It’s very economical and cost effective.



Q5: What’s package, will it protect the products?

A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.



Q6: What’s delivery time?

A: Commonly, the lead time is within 5 working days after receiving the payment.



Q7: What payment terms can you accept?

A: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.



Q8: How is the shipping method?

A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
