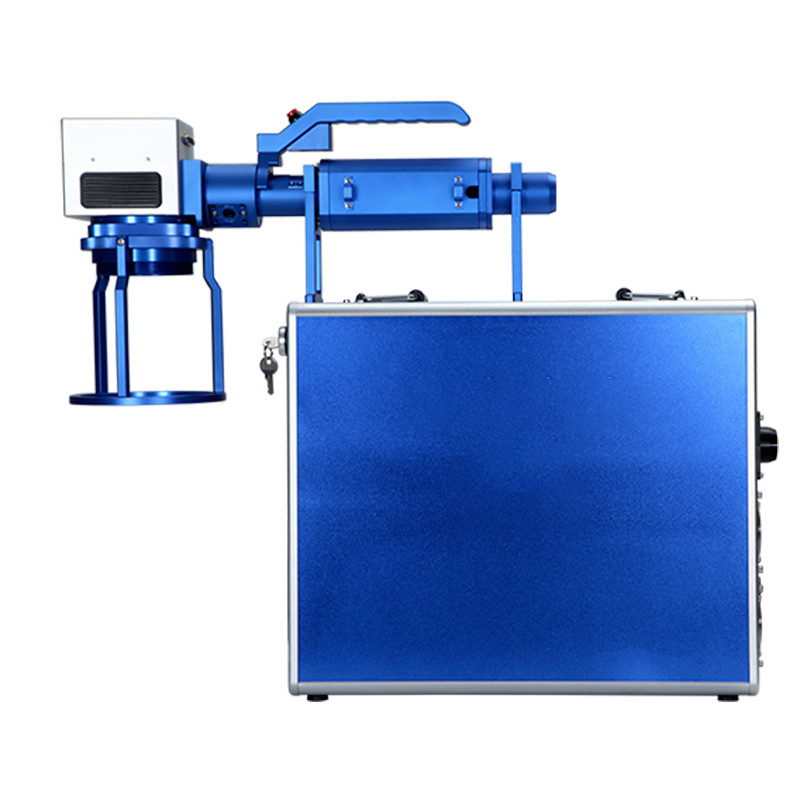

Optical Fiber Laser Etcher Flying Type Mini Laser Marking Machine For Plastic

Basic Information
Place of Origin: Beijing, China
Brand Name: YLH
Certification: ce, ISO
Price: $2,999.00/sets 1-9 sets
Packaging Details: Wooden Box Comply with International Export Standard
Supply Ability: 9999 Set/Sets per Month
Detail Information
Application: Laser Marking Working Accuracy: 0.01mm
Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, DXP, LAS Laser Type: Fiber Laser, Fiber Laser Portable Machine
CNC Or Not: Yes Cooling Mode: Air Cooling
Control Software: EZCAD Laser Source Brand: RAYCUS
Marking Area: 110mm*110mm Warranty Of Core Components: 2 Years
Core Components: Pressure Vessel, Motor, Bearing, Gear, Gearbox, Engine, PLC, Laser, Laser Source Laser Wavelength: 1064nm
Marking Speed: 10000mm/s Marking Depth: 0 ~0.5mm
Applicable Material: Metal Working Area: 110*110 /150*150/175*175/ 200*200/300*300mm
High Light:

Optical Fiber Laser Etcher

,

Fiber Laser Etcher Flying Type

,

Mini Laser Marking Machine For Plastic


Product Description

2022 Newstyle Optical Fiber Etcher Flying Type Mini Laser Marking Machine Selling For Plastic





Product Description



Product Name Fast Speed 50W Laser Marking Machine For Pipe And Hardware
Laser Type Fiber
Modol YLH-20E/30E/50E
Certificatons CE, ISO,OTHER
Power 20W 30W,50W
Brand SUNDOR
Country of Origin CHINA
Work Precision ±0.01mm
Support Format PLT, DST, AI, DXF, BMP, JPG, CAD,CDR, DWG,PCX
Software EZCAD
Cooling Way AIR COOLING
NC YES
Condition NEW
Warranty 36 Months
Work Area (mm) 110x110/175x175(Customized)
Min Line Width 0.017mm
Min Character 0.15mmx0.15mm
Wavelength 1064nm
After-Service Engineers available to service machinery overseas
Laser Repetition Frequency: 20KHz-80KHz(adjustable)
Power Demand AC220V/50HZ/2A
Optimum Working Temperature 10-40 °C
Marking Depth 0.01-1.0mm(subjejct to material)

Optical Fiber Laser Etcher Flying Type Mini Laser Marking Machine For Plastic 0Optical Fiber Laser Etcher Flying Type Mini Laser Marking Machine For Plastic 1


Product Features





1.    The fiber laser generator is high integrated, has superior laser beam and uniform power density. Output laser power is stable. This design highly increase the machine’s anti-reflection ability with optical isolator, be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.



2.    Adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and performance reached the international advanced level.



3.    Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled inside, small occupation, easy to install.



4.    Adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and powerful control system, can meet the demand of most industry application process in market.



5.    High efficiency for photoelectric conversion, simple operation, Compact in structure, support harsh working environment, no consumables.



6.    YLH-20E fiber laser marking machine is portable. Power box and laser source can be separated. Easy transport and can be displayed separately according to user’s site space situation.



Optical Fiber Laser Etcher Flying Type Mini Laser Marking Machine For Plastic 2
 Optical Fiber Laser Etcher Flying Type Mini Laser Marking Machine For Plastic 3







Applicable Industries:



Precision instruments, computer keyboards, auto parts, plumbing parts, communications equipment, medical equipment , bathroom equipment, hardware tools, luggage decoration, electronic components, home appliances, watches, molds, gaskets and Seals, data matrix, jewelry, cell phone keyboard, buckle, kitchenware, knives, cooker, stainless steel products, aerospace equipment, integrated circuit chips, computer accessories, signs molds, elevator equipment, wire and cable , Industrial bearings, building materials, hotel kitchen, military, pipelines.

Tobacco industry, bio-pharmaceutical industry, liquor industry, food packaging, beverage, health care products, plastic buttons, bathing supplies, business cards, Clothing accessories, cosmetics packaging, car decoration, wood, logos, characters, serial number, bar code, PET, ABS, pipeline, advertising logo and other non-metallic industries.

 Optical Fiber Laser Etcher Flying Type Mini Laser Marking Machine For Plastic 4

Applied Materials:

1. All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition

2. Non-metallic: non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothes , wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material

Optical Fiber Laser Etcher Flying Type Mini Laser Marking Machine For Plastic 5

Related Products
Optical Fiber Laser Etcher Flying Type Mini Laser Marking Machine For Plastic 6

Packaging


1.Standard wooden cases with sponge filled inside for packing protection
2. The Wooden case is fumigation free which is suitable by sea & by air.
3. Customized Packing as per Customer's requirement.

Optical Fiber Laser Etcher Flying Type Mini Laser Marking Machine For Plastic 7



Optical Fiber Laser Etcher Flying Type Mini Laser Marking Machine For Plastic 8

Company Information

 Optical Fiber Laser Etcher Flying Type Mini Laser Marking Machine For Plastic 9

Optical Fiber Laser Etcher Flying Type Mini Laser Marking Machine For Plastic 10

Optical Fiber Laser Etcher Flying Type Mini Laser Marking Machine For Plastic 11


FAQ





Q1: If some problems happen to this machine, what should I do?

We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.



Q2: What’s consumables of laser marking machine?

A: It does not have consumable. It’s very economical and cost effective.



Q3: What’s package, will it protect the products?

A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.



Q4: What’s delivery time?

A: Commonly, the lead time is within 5 working days after receiving the payment.



Q5: What payment terms can you accept?

A: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.



Q6: How is the shipping method?

A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
