Kelier CNC Pneumatic Marking Machine Metal Engraving Machinery For Nameplate

Basic Information
Place of Origin: Beijing, China
Brand Name: Sundor Laser
Certification: CE ISO
Price: $900.00 - $1,500.00/sets
Packaging Details: Wood case
Supply Ability: 500 Set/Sets per Month
Detail Information
Applicable Industries: Advertising Company, Building Material Shops, Construction Works , Energy & Mining, Farms, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Garment Shops, Home Use, Hotels, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Restaurant, Rated Power: 300w, 300W
Engraving Speed: 0-5 Letters/second, 0-5 Letters/second Main Axle Rotational Speed: N/A, N/A
Feeding Height: 0-350mm, 0-350mm Milling Cutter Diameter: 1-5mm, 1-5mm
Application: Metal And Some Hard Plastic Dimensions: 340x440mm, 340x440mm
Weight: ≤50kg, ≤50kg After-sales Service Provided: Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Free Spare Parts, Online Support, Video Technical Support
Repeat Accuracy: 0.02-0.04mm
High Light:

CNC Pneumatic Marking Machine

,

Kelier Pneumatic Marking Machine

,

Metal Engraving Machinery For Nameplate


Product Description

kelier CNC Pneumatic Dot Peen Marking Machine metal engraving machinery for Nameplate Metal Serial Numbers Engraving mac

Portable touch screen dot peen marking machine for steel,pneumatic metal marking tools

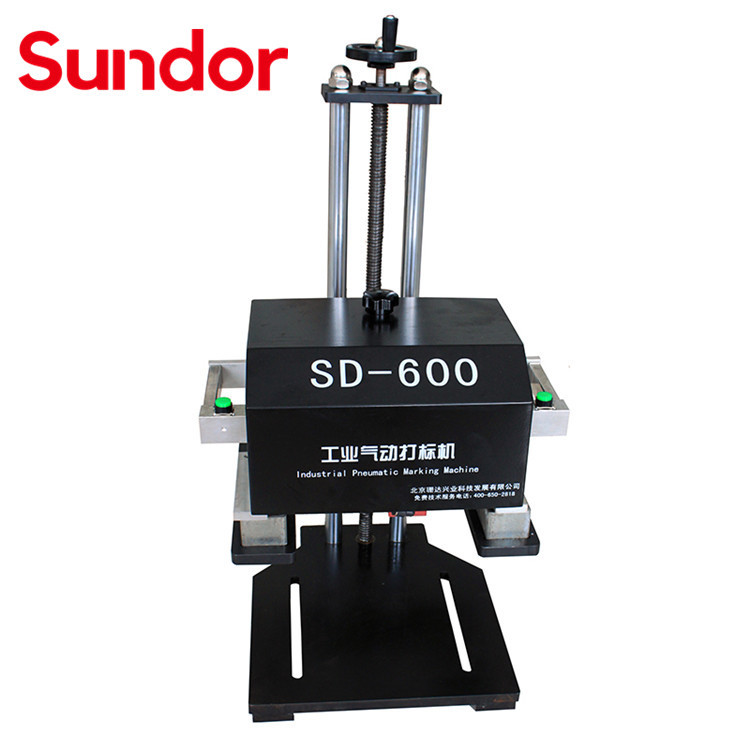

Kelier CNC Pneumatic Marking Machine Metal Engraving Machinery For Nameplate 0

Product Parameter

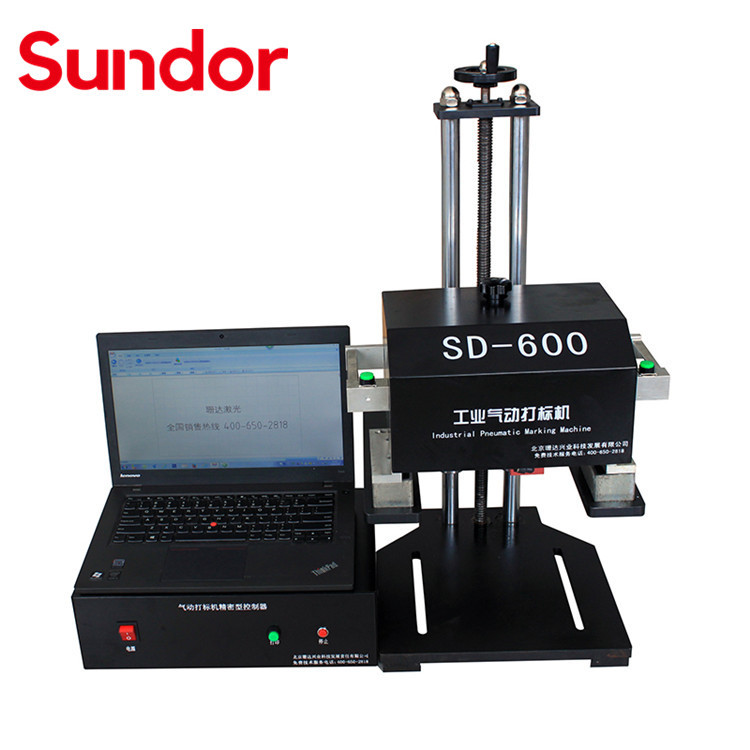

 Kelier CNC Pneumatic Marking Machine Metal Engraving Machinery For Nameplate 1

By printing the Chinese and English characters, the contents of the graphics are input to the computer, and then the content is converted into digital control signals by computer marking software and sent to the controller to drive the printing. So as to hit the workpiece formed by a continuous lattice of characters and graphics.

Needle in X-Y two-dimensional plane according to the trajectory of the set movement, while the print pin under the action of compressed air on the workpiece surface printed by the dense lattice composed of concave mark.





Printing sped

Straight line 80mm/sacond

Print pin impact frequency

300 times speed

Printing depth

0.012-0.6mm(depend on hardness of the material)

Compressed air

0.3-0.6 Mpa

Print hardness of the workpiece

<HRC60

Temperature

0-55 Celsus

Minimum character height

1mm

Humidty

Relative humidity≤90%

Motion positioning accuracy

0.04mm

Power consumption

<400W

Repeat printing accuracy

0.04mm

Power supply

AC220V±10% 50HZ

Print range

Plane 140*80mm(Customizable)

Total weight

<60kg

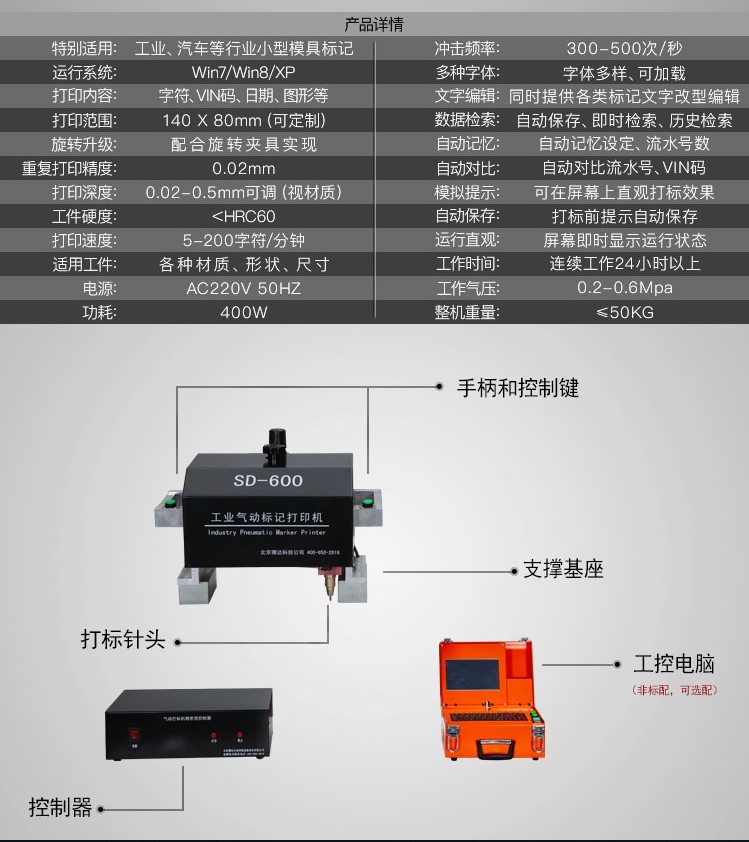

Kelier CNC Pneumatic Marking Machine Metal Engraving Machinery For Nameplate 2



Product Details

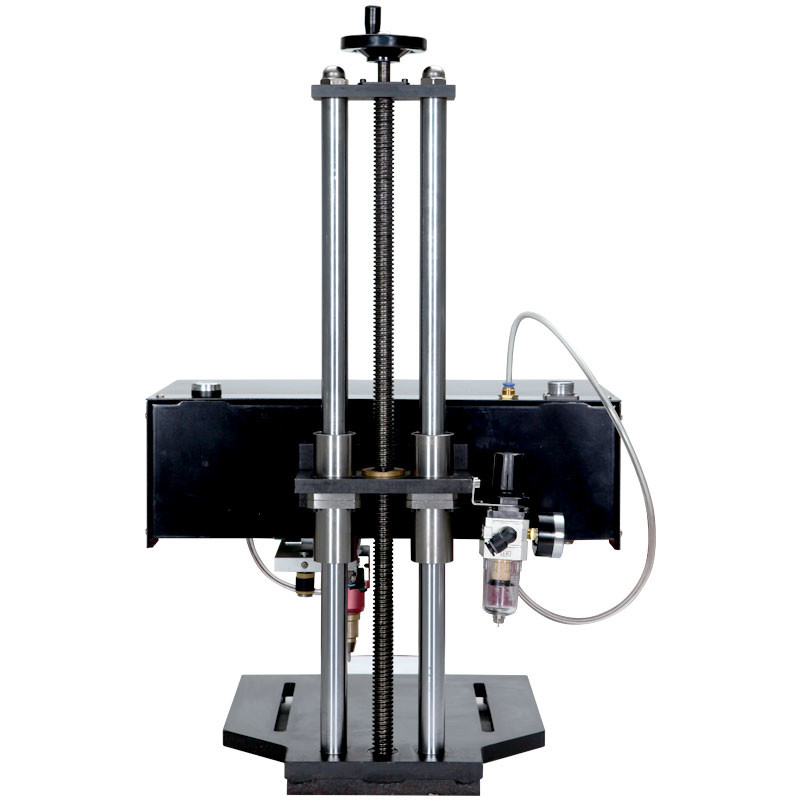

 Kelier CNC Pneumatic Marking Machine Metal Engraving Machinery For Nameplate 3



Product Application



Kelier CNC Pneumatic Marking Machine Metal Engraving Machinery For Nameplate 4



Kelier CNC Pneumatic Marking Machine Metal Engraving Machinery For Nameplate 5



Product Application Fields of Pneumatic Dot Peen Marking Machine:

Pneumatic Dot Peen Marking Machine is applicable for the fields of automobile, motorcycle, mechanism, petroleum, aeronautical and space, electric apparatus and suitable for markings on steel, metal, nonmetal and hard plastic materials.

Kelier CNC Pneumatic Marking Machine Metal Engraving Machinery For Nameplate 6

Pneumatic Dot Peen Marking Machine is adequate for marking logos, characters, serials numbers and VIN codes on bodywork of motorcycles, nameplates, connecting rods, engines, mechanical parts, machine tools, fastening pieces and various hard plastic products.

Packaging & Shipping

 Kelier CNC Pneumatic Marking Machine Metal Engraving Machinery For Nameplate 7

Kelier CNC Pneumatic Marking Machine Metal Engraving Machinery For Nameplate 8



Related Product

 Kelier CNC Pneumatic Marking Machine Metal Engraving Machinery For Nameplate 9

Company Information

 Kelier CNC Pneumatic Marking Machine Metal Engraving Machinery For Nameplate 10

Kelier CNC Pneumatic Marking Machine Metal Engraving Machinery For Nameplate 11



FAQ



Q1: I know nothing about this machine, what type of machine should I choose?

We will help you choose the suitable machine and share you the solution; you can share us what material will you marking / engraving and the depth of MARKING/ ENGRAVING.



Q2: When I got this machine, but I don’t know how to use it. What should I do?

We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.



Q3: If some problems happen to this machine, what should I do?

We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.



Q4: What’s consumables of Pneumatic marking machine?

A: The main consumable is the marking needle, we will match you 3 pcs for free.



Q5: What’s package, will it protect the products?

A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.



Q6: What’s delivery time?

A: Commonly, the lead time is within 5 working days after receiving the payment.



Q7: What payment terms can you accept?

A: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.



Q8: How is the shipping method?

A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
